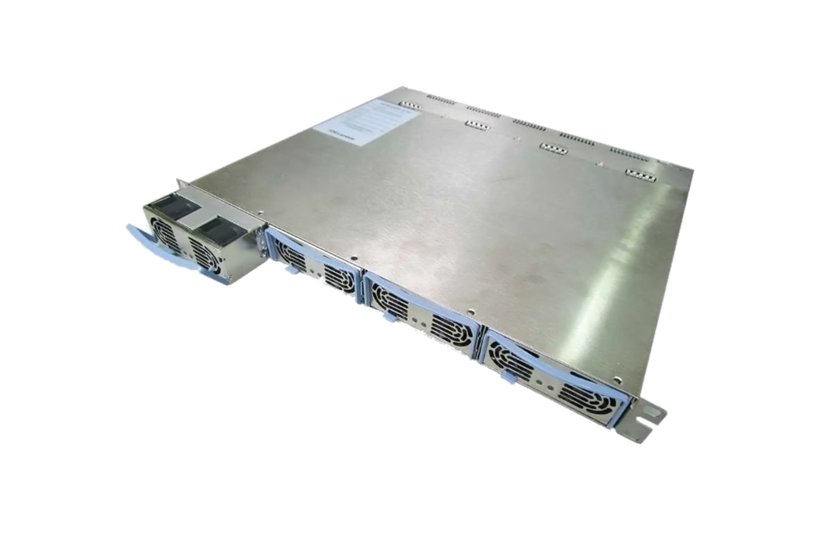

HFE Series
Modular rack power supply 1600/2500 W
The HFE power supply series has it all: the 1 U high front-end power supply units with 1.6 kW or 2.5 kW individual output have an outstanding power density and, if required, deliver a full 8 kW (HFE1600) or 10 kW (HEF2500) output power in a single 1 U rack through parallel operation. The HFE power supplies can either be used individually or up to five HFE1600 or 4 HFE2500 can be mounted side by side in a 1U rack to form a power block. Either IEC 320 C20 sockets or screw terminals are available for the AC input. The output voltage can be set via resistor, external control voltage or via the optional PMbus™-compatible I²C interface. A LAN interface is also available as an option.
- up to 29.2 W/in3 power density
- internal decoupling MOSFET and current splitting
- Efficiency meets the requirements of the Climate Savers Computing Initiative
- up to 10,000 W in 1 U rack
- Optional PM bus and LAN interface
- 1 U racks with single or dual output
TDK-Lambda offers a very wide variety of powerful, robust and flexible power supplies and modules for power supplies. Whether classic industrial power supplies, DIN rail power supplies or on-board power supply solutions from the socket to the POL with AC/DC front ends, intermediate bus converters, isolating DC/DC brick converters and non-isolating POL converters.
