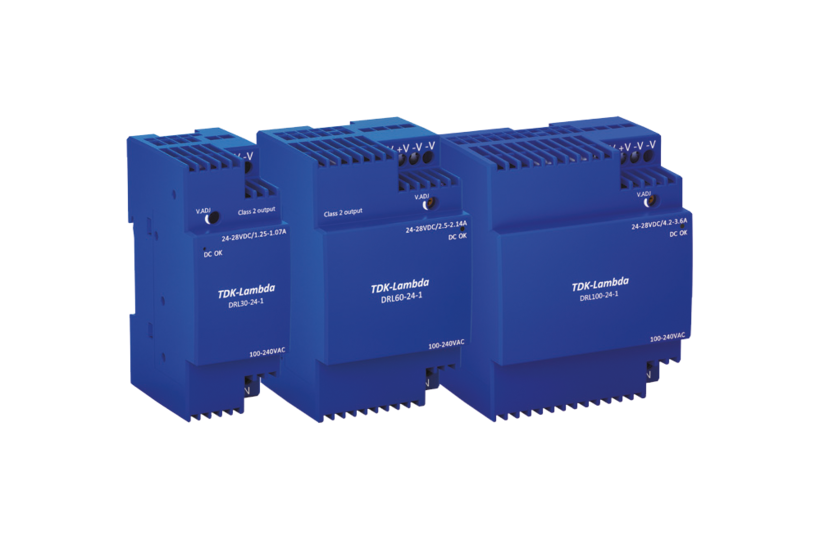

The DRL DIN rail power supply series is suitable for building automation and especially for tight spaces in metering stations, distribution boxes or sub-distribution boards. It delivers 10-100W output power, complies with ErP efficiency guidelines and is supplied via a mains wide-range input (85-264Vac). All four power classes are available with 12, 15 and 24Vdc nominal output voltages, and there are also 12Vdc models with 10, 30 and 60W output power. All models (except the 10W devices) have trimmable outputs. The DRL series has a protection class II construction (protective insulation) and therefore does not require a protective conductor. The test voltage between input and output is 3kV AC. All models are convection-cooled and designed for operating temperatures between -20°C and +71°C. The series is also equipped with long-life electrolytic capacitors and comes with a three-year warranty.
TDK-Lambda offers a very wide variety of powerful, robust and flexible power supplies and modules for power supplies. Whether classic industrial power supplies, DIN rail power supplies or on-board power supply solutions from the socket to the POL with AC/DC front ends, intermediate bus converters, isolating DC/DC brick converters and non-isolating POL converters.
