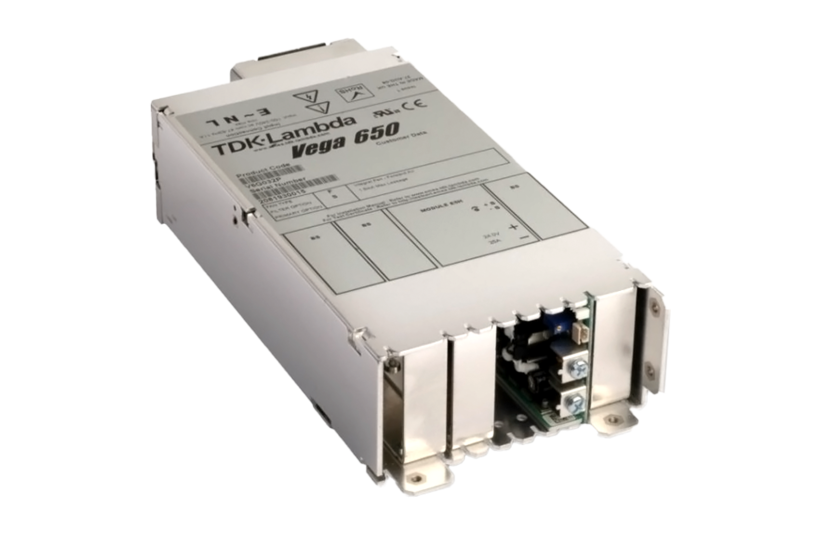

Vega Series

AC-DC power supply unit

TDK-Lambda's Vega series (450, 650 and 900W) is fully configurable and can be ordered with one or up to ten adjustable outputs. Up to 5 modules (single or dual output) can be sourced with output voltages from 1.8 to 64V and output currents of up to 120 amps. No base load is required. The functions Inhibit (remote shutdown), AC fail (mains failure), active current sharing and a DC-good signal are optionally available. The series is certified in accordance with IEC 62368-1 and medical approval 60601-1 and enables the implementation of different cooling concepts. There are also several options for the earth leakage current.

Do you have questions about our products?
Please let us know.
  • Power density 5.8W/ cubic inch
  • 450 to 900 Watt output power
  • 1-11 fixed or adjustable modular outputs
  • Output voltages: 1.8 - 64 V (full overlap)
  • Output currents: 1A - 120A
  • Cooling: system fan / front fan / airflow direction freely selectable
  • Signal display: Mains fail, Global inhibit, Output good, Output inhibit
  • Extensive medical and industrial approvals

TDK-Lambda offers a very wide variety of powerful, robust and flexible power supplies and modules for power supplies. Whether classic industrial power supplies, DIN rail power supplies or on-board power supply solutions from the socket to the POL with AC/DC front ends, intermediate bus converters, isolating DC/DC brick converters and non-isolating POL converters.
