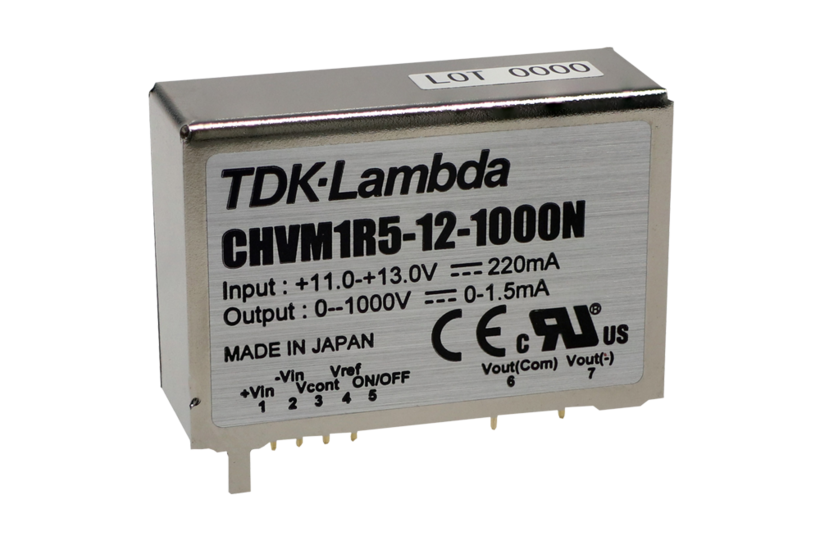

CHVM
DC-DC Converters 1.4-3W, 12V Input, 180-2000V Output
The CHVM high-voltage DC-DC modules offer output voltages of up to 2kV in compact SIP PCB formats. The output power is 1.4W to 3W depending on the size and all types operate with a nominal 12Vdc input. The output can be adjusted from 0.5% to 100% via an external variable resistor or a programming voltage and switched via a remote on/off function. The CHVM series offers extremely low ripple and noise (down to 5mVp_p at an output voltage of 1000V), making them suitable for precise, noise-sensitive applications such as photoelectron multipliers, photodiodes and other particle detectors commonly used in laboratory equipment such as scanning electron microscopes, X-ray fluorescence spectrometers, mass spectrometers and ultrasonic probes.
- Programmable output voltage (voltage or resistance)
- Compact size
- Five-sided shielding
- Low output ripple
- Certified safety
TDK-Lambda offers a very wide variety of powerful, robust and flexible power supplies and modules for power supplies. Whether classic industrial power supplies, DIN rail power supplies or on-board power supply solutions from the socket to the POL with AC/DC front ends, intermediate bus converters, isolating DC/DC brick converters and non-isolating POL converters.
