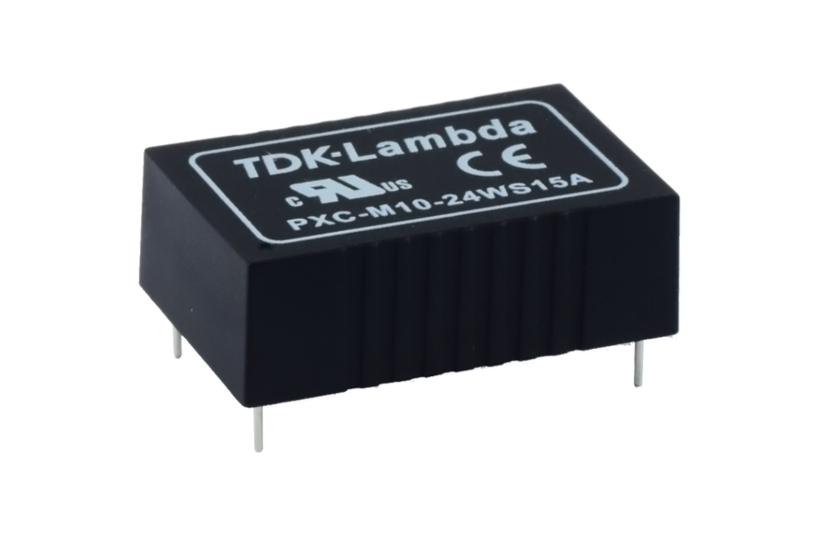

PXC-M
Isolating DC/DC converters for medical 3-10W
The PXC-M DC-DC converter series has a wide 4:1 input voltage range, medical approval, 5 kV AC input/output isolation voltage, 3/6/10W output power and a standard DIP 24 housing. The modules are suitable for a wide range of applications, particularly in medical applications - including applications with patient contact thanks to 2 x MOPP - and battery-operated applications. The compact DC-DC modules convert 9-36 V DC or 18-75 V DC input voltage into 3.3, 5, 12, 15, 24, ±5, ±12 or ±15 V DC. As their inputs each cover two typical DC supply ratings (12 and 24 V or 24 and 48 V), they facilitate stock-keeping by improving availability and reducing costs.
- Medical approval according to 60601-1 (3rd Edition)
- 2MOPP, 5kVac isolation for 1 minute
- Low patient leakage current value < 0.25 μA
- Compact medical 4:1 DC-DC converter (24V/48Vnom.)
