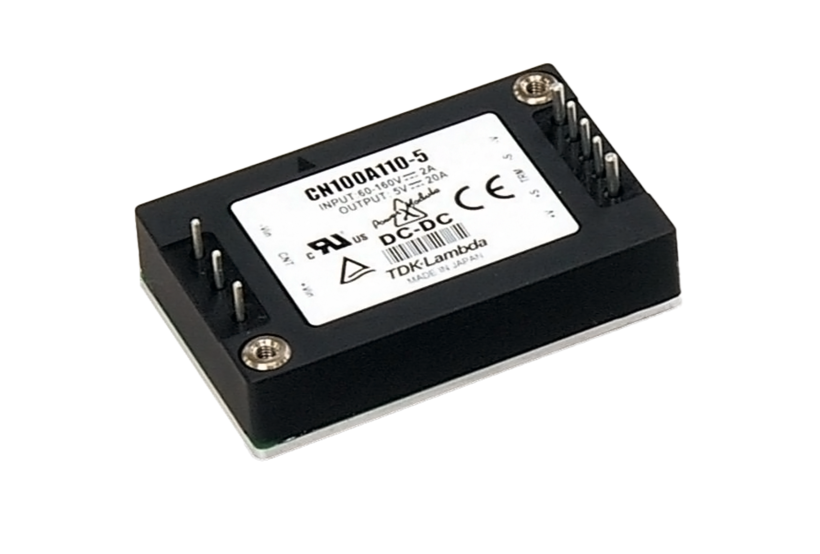

CN-A
DC/DC converters for railway use
With input voltage ranges of 60 - 160Vdc or 14.4 ... 36Vdc, the CN-A series primarily addresses applications in the railway sector. Testing for shock and vibration according to IEC61373 and an optional coating allow use in terminal equipment with approvals according to EN50155. The model range includes modules in the power range from 30W to 100W as quarter-brick and 200W as half-brick with output voltages from 5V to 24V.
- Small size - less space required on the PCB
- Quarter & half brick footprint - industry standard size
- Full power from -40˚C to +100˚C - No derating required - covers TX class for railroads
- UVLO function - Protects the battery from deep discharges
- Coating option - According to EN50155
TDK-Lambda offers a very wide variety of powerful, robust and flexible power supplies and modules for power supplies. Whether classic industrial power supplies, DIN rail power supplies or on-board power supply solutions from the socket to the POL with AC/DC front ends, intermediate bus converters, isolating DC/DC brick converters and non-isolating POL converters.
