iQE

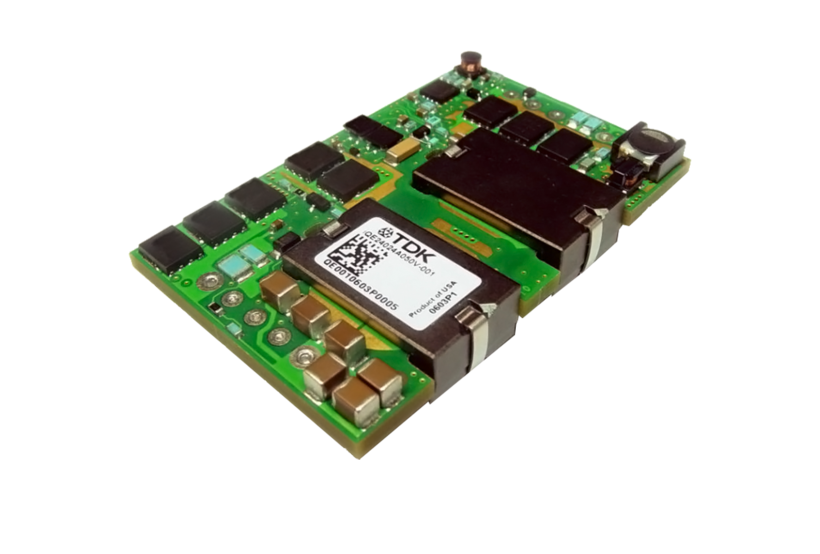

DC/DC Quarter Bricks 108-204 W
With a low component count and single-board open-frame design, the iQE provides both solid electrical and thermal performance. These mid power quarter bricks (108 to 204W) feature a low profile of just 10.4mm and are available with 48V input voltage, and output voltages of 5V to 15V.
- 48 V input voltage
- up to 30 A output current
- up to 204 W max. output power
- DOSA-compliant
- Efficiency up to 94 %
- Fixed switching frequency (330 kHz)
- Flat efficiency curve
TDK-Lambda offers a very wide variety of powerful, robust and flexible power supplies and modules for power supplies. Whether classic industrial power supplies, DIN rail power supplies or on-board power supply solutions from the socket to the POL with AC/DC front ends, intermediate bus converters, isolating DC/DC brick converters and non-isolating POL converters.
