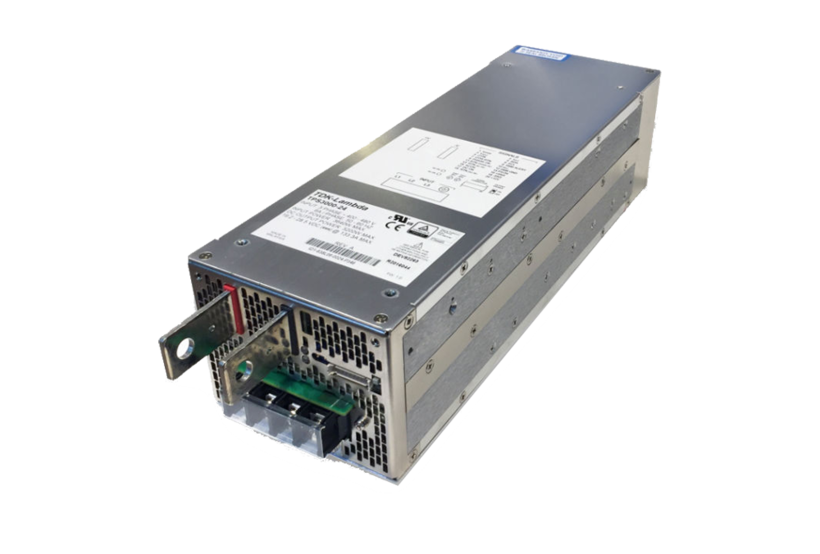

TPS3000 / TPS4000

Professional industrial power supplies 3-phase

The TPS series with 2 U height provides up to 4,080 W output power and has a three-phase wide-range input without neutral conductor (350-528 V AC). It offers a comprehensive signal range, with isolated outputs for AC fail, DC good and phase loss, remote on/off, remote sense and a 12 V / 0.3 A auxiliary voltage output. Its PMbus™ communication interface enables remote monitoring of output voltage and current, internal temperature, status signals and fan speed. In addition, output voltage, current limiting and remote on/off can be programmed via the PMBus™. This power supply has a typical efficiency of 93% and can operate at temperatures up to 50°C under full load. The TPS4000 is designed to meet MIL-STD-461F/G RE102 EMI and MIL-STD-810F vibration and shock requirements.

Do you have questions about our products?
Please let us know.
HY-LINE Technology GmbH
+49 89 614 503 10sales@hy-line.de
  • Input 350...528 V AC 3-phase in star or delta connection
  • Output voltage regulated and adjustable over a wide range (19.2...28.5 or 38.4...58 V DC)
  • Standby 12 V/0.3 A DC
  • PMBus, signals DC Good, AC Fail, Dropped Phase, Fan Fail
  • Remote Sense, Remote Adjust, Remote On/Off
  • Up to 8 power supply units can be connected in parallel
  • OR- ing FET integrated (for parallel connection, N+1 redundancy)
  • > 92% efficiency
  • Adjustable current limitation (70...105 %)
  • Operating range -40 °C to 70 °C
  • Designed to meet MIL-STD810F shock and vibration), SEMI F47
  • Variant available for large capacitive loads (supercap arrays!)
  • 107 x 84.4 x 324/335 mm³

TDK-Lambda offers a very wide variety of powerful, robust and flexible power supplies and modules for power supplies. Whether classic industrial power supplies, DIN rail power supplies or on-board power supply solutions from the socket to the POL with AC/DC front ends, intermediate bus converters, isolating DC/DC brick converters and non-isolating POL converters.
