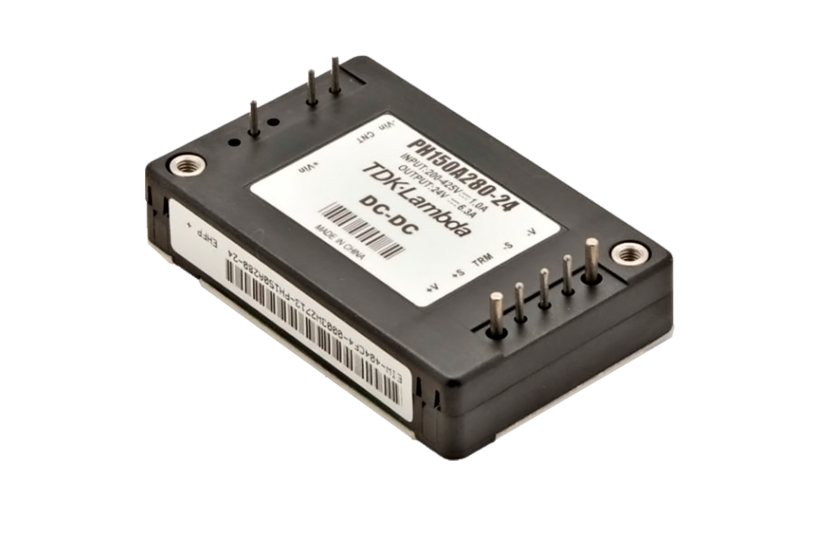

PH-A

50-1200W, 200-425Vdc DC-DC converter modules

The isolated DC-DC converters of the PH-A series are available with output powers of 50W, 75W, 100W, 150W, 300W, 600W and 1,200W and can be supplied with 200 to 425Vdc. The output voltages available are 3.3V, 5V, 12V, 15V, 24V, 28V, 36V and 48V. For non-standard output voltages, this can be adjusted between -60% and +20%. All models have a remote sense and remote on/off function and can be contact-cooled via a base plate or convection-cooled with optional heat sinks. The PH-A models have an efficiency of up to 94% and can be used at baseplate temperatures from -40 to +100 °C. Applications include customized power supplies, distributed power supply systems, semiconductor manufacturing, data communications, power distribution systems, industrial applications and renewable energy.

Do you have questions about our products?
Please let us know.
HY-LINE Technology GmbH
+49 89 614 503 10sales@hy-line.de
  • Wide range input 200 to 425Vdc
  • Design with base plate
  • Wide temperature range -40 to +100°C at the base plate
  • Up to 94% efficiency
  • Parallel function with internal ORing FET on PH1200A models

TDK-Lambda offers a very wide variety of powerful, robust and flexible power supplies and modules for power supplies. Whether classic industrial power supplies, DIN rail power supplies or on-board power supply solutions from the socket to the POL with AC/DC front ends, intermediate bus converters, isolating DC/DC brick converters and non-isolating POL converters.
