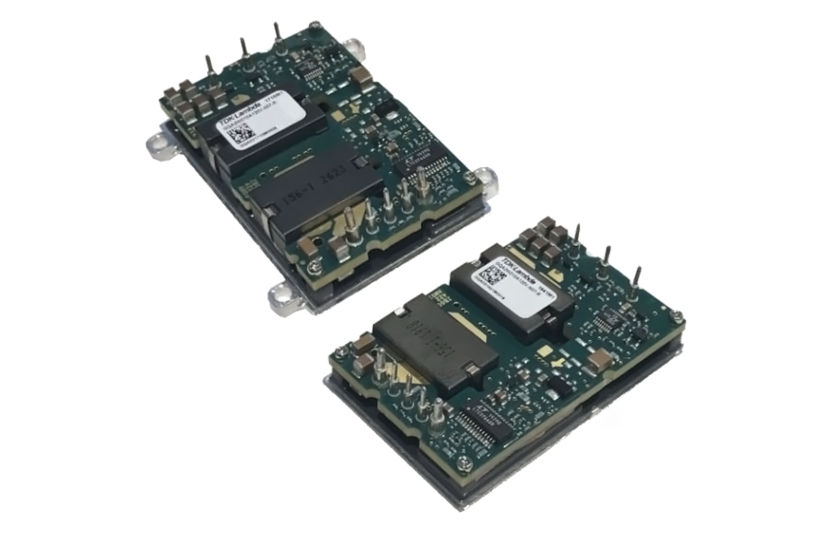

GQA

DC/DC Brick Modules for harsh environments

These 120W GQA modules deliver 120W output power with the usual output voltages from 5V to 48V. The GQA120 modules are fully encapsulated and operate via a wide-range input from 9 to 36 VDC (18-36 VDC for the 48 V model). Short-term voltage peaks of up to 50 VDC at the inputs cannot affect the modules. The GQA DC-DC converters comply with the CSA/IEC/EN 60950-1 and UL 60950-1 standards and have a CE marking based on the Low Voltage and RoHS2 directives. The input/output and input/baseplate insulation voltage for base modules is 1500 VDC (optionally up to 3000 VDC).

Do you have questions about our products?
Please let us know.
HY-LINE Technology GmbH
+49 89 614 503 10sales@hy-line.de
  • Standard ¼ brick format (quarter brick)
  • 9-36, 18-36 VDC input range
  • Up to 91.5 % efficiency
  • Four housing variants available
  • Test voltage level between primary and secondary side is 3,000 VDC

TDK-Lambda offers a very wide variety of powerful, robust and flexible power supplies and modules for power supplies. Whether classic industrial power supplies, DIN rail power supplies or on-board power supply solutions from the socket to the POL with AC/DC front ends, intermediate bus converters, isolating DC/DC brick converters and non-isolating POL converters.
