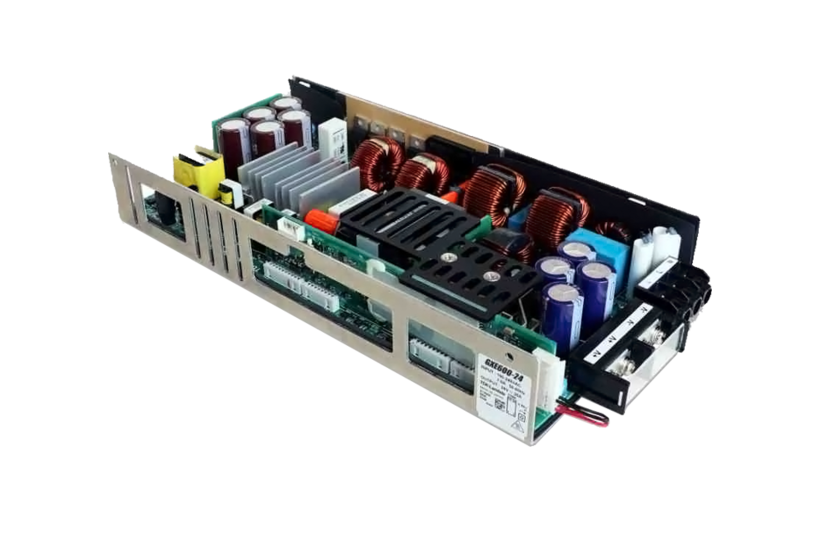

GXE600

600 W AC/DC Medical Power supply

The GXE600 is a new built-in power supply unit with digital interface and analog programming inputs. Thanks to a sensational efficiency of up to 95%, the convection-cooled power supply delivers an impressive 600W output power and is designed for integration in 1U subracks. A particular highlight is the very wide output voltage and current range, which can be programmed both via analog control voltages (0 - 6V) and via a digital RS-485 interface with Modbus RTU protocol. With approvals for the medical and ITE sectors - already in accordance with the very latest IEC62368-1 - the power supply unit is suitable for a wide range of tasks in medical devices and industrial areas, particularly in the current hot topics of Industry 4.0 and IoT. The option of using it as a programmable voltage and/or current source opens up fields of application in test systems that were previously equipped with laboratory power supplies. With an output power of 600W with pure convection cooling, the device is also interesting for users who "only" attach particular importance to low-noise, fanless cooling.

Do you have questions about our products?
Please let us know.
HY-LINE Technology GmbH
+49 89 614 503 10sales@hy-line.de
  • Safety approvals for IEC 60601-1 and 62368-1
  • Convection cooled
  • Digital (RS-485) and analog programming
  • Up to 95% efficiency
  • Optional housing cover and coating
  • 7 year warranty

TDK-Lambda offers a very wide variety of powerful, robust and flexible power supplies and modules for power supplies. Whether classic industrial power supplies, DIN rail power supplies or on-board power supply solutions from the socket to the POL with AC/DC front ends, intermediate bus converters, isolating DC/DC brick converters and non-isolating POL converters.
