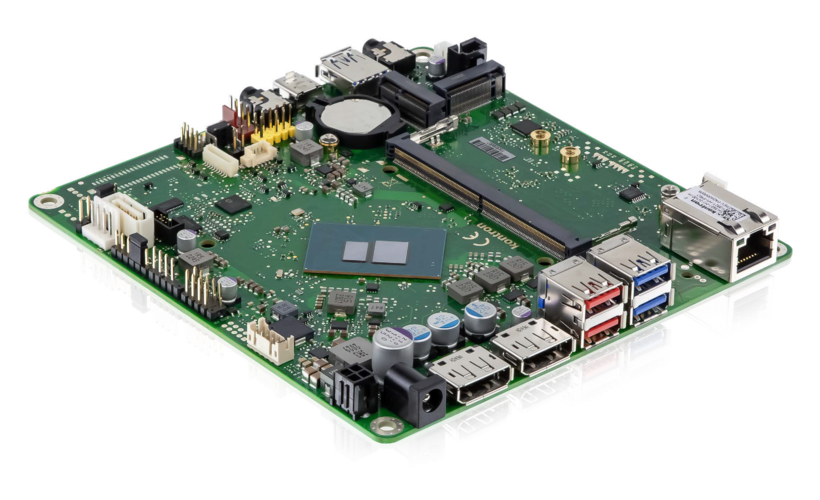

K3921-H mSTX
Extended Lifecycle Motherboard supporting the Intel processors N series
The Extended Lifecycle mSTX Motherboard K3921-H is based on the latest Intel® Processor N100 (Alder Lake N) with powerful UHD Gen12 graphics using Intel® Xe architecture. There are two DisplayPorts 1.4 and one DisplayPort via front USB-Type-C plus onboard embedded DisplayPort. Three independent displays with up to 4K resolution (2x 4K + 1x FHD) are supported. The K3921-H is equipped with an M.2 Key-M connector with PCIe and SATA support and in addition to this an M.2 slot for WLAN/Bluetooth modules (PCIe and CNVi) and other PCIe based add on cards is also included. Via the front USB-Type-C the K3921-H supports PowerDelivery Sink mode, USB 3.2 Gen1 and DisplayPort AlternateMode (DPoC). This makes it the perfect fit for Thin Client applications, in combination with our very compact SMARTCASE™ S501 chassis. All components are designed and approved for 24/7 continuous operation.
- Latest DDR5 memory technology for best-in-class system performance
- Intel® UHD Gen12 Graphics - driven by Intel® Xe architecture (within SoC)
- Up to 2x DisplayPort 1.4 and 1x DisplayPort via USB Type-C
- eDP V1.4b (4 K) onboard
- Designed for fanless operation
