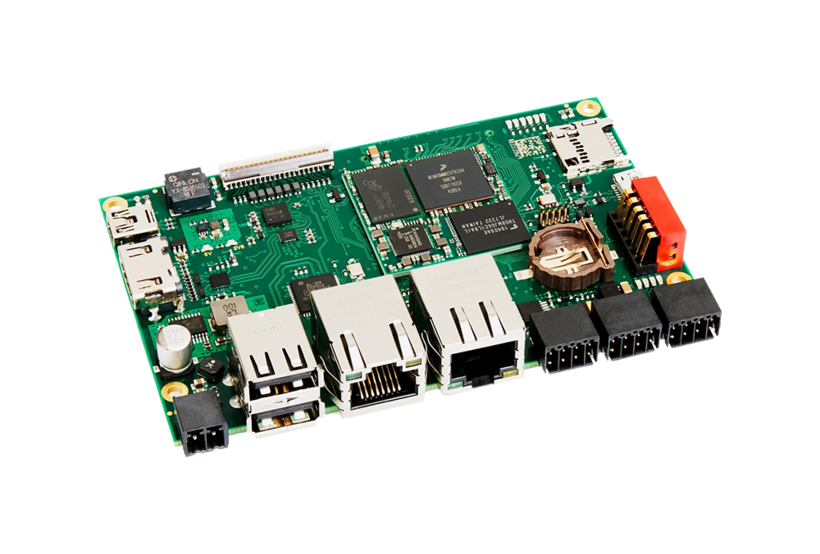

BL i.MX8M Mini OSM-S
OSM baseboard with high-performance processorQuad Core 1.6 GHz
The Open Standard Module™ (OSM) standardizes the variety of manufacturer-specific modules with regard to sizes, pin assignment, interfaces, cooling as well as power dissipation. The solderable OSM-S i.MX8M Mini SoM module is placed on the BL i.MX8M Mini OSM-S baseboard. In addition to the advantages of simplified machine production, it forms a cost-effective basis for board and application development.
The board is equipped with a powerful NXP i.MX8M Mini Quad Core application processor, which ensures high performance, low power consumption and long availability. Demanding 3D graphics applications as well as complex and extensive system architectures are implemented effortlessly. It offers a Quad Core microprocessor with 4x Arm® Cortex®-A53 with a clock frequency of 1.6 GHz, a DDR4 memory technology as well as an extensive configuration of different interfaces.
With the combination of SoM and baseboard nothing stands in the way of your successful project start.
- CPU: 4x Arm®Cortex®-A53 @1.6 GHz, 1x Arm® Cortex®-M4 @400 MHz, 2D GPU and 3D GPU
- Memory SOM Module:
- 4 GByte LPDDR4 RAM
- 2 Mbyte NOR-FLASH
- Memory SOM Baseboard
- 32 GByte eMMC
- 1 kb EEPROM
- 1x microSD card slot
- Ethernet: 1x 1 Gbit/s, 1x 10/100 Mbit/s
- USB: 2x 2.0 host, 1x 2.0 OTG
- DIO: 4x DIO (24 V/up to 800 mA)
- Serial: 1x RS232, 1x RS485
- CAN: 1x CAN 2.0
- LCD Interface: 1x HDMI, 1x LVDS, up to 1920 x 1080 @60 fps
- Touch: 1x I2C, 1x USB
- Power supply: 24 V DC ±20 %
- Power consumption: Linux running < 2 W
- Temp.: 0 °C...+70 °C
- OS: Embedded Linux (Yocto distribution)
- Form factor: 105.5 x 67 mm (4.3")
- Extension: 1x I²C, 1x I²S, 1x SPI, 1x SDIO (8-bit), Camera Interface 1x MIPI CSI (4-lane)
- Security: HAB Secure Boot, TrustZone, True RNG, RSA up to 4096, AES-128/192/256, 3DES, ARC4, ARC4, MD-5, SHA up to 256, ECC, Secure JTAG
