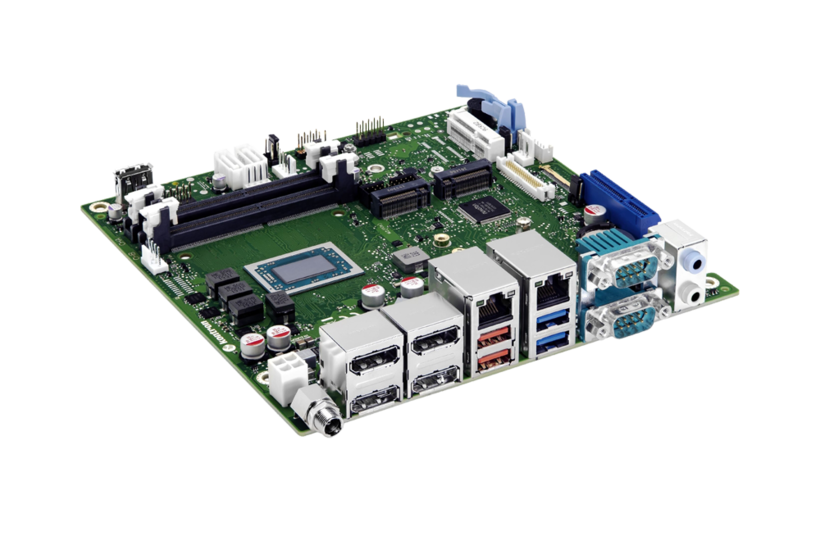

D3713-V/R mITX
Mini-ITX Industrial Motherboard with AMD Ryzen™ Embedded V1000/R1000 Processor Series (Soc)
The D3713-V/R mITX industrial motherboard supports the AMD Ryzen™ Embedded V1000 and R1000 processor series with integrated AMD Radeon™ Vega Graphics and can be used in applications with high graphic requirements such as casinos, medical displays, thin clients and industrial PCs.
It is equipped with up to four DisplayPorts, one embedded display port and dual-channel LVDS (24bit) and powers up to four independent displays in 4K resolution. Depending on how much (graphical) power is required, 5 motherboard versions with different AMD processors are available.
- Processor: AMD Embedded V1202B/V1605B/V1807B/R1305G/R1606G SoC
- Memory: 2x DDR4 3200 SDRAM up to 32 GB
- AMD Radeon Vega Graphics (inside SoC)
- Up to 4x DisplayPort 1.4
- Dual Channel LVDS (24Bit) and eDP 1.3 (4k) on board
- PCI Express x4 (Gen3)
- 8 bit GPIO & HD audio on board
- USB 2.0 and USB 3.1 (Gen1/Gen2) on board
- x SATA III; USB stick socket
- Onboard support for 1x M.2 SSD (Key-M: 2230/2242/2280)
- Onboard support for 1x M.2 (Key-B: 2242/2252/2260/2280)
- Onboard support for 1x Mini-PCIe (halfsize/fullsize)
- Dual GbE LAN onboard incl. teaming support
- AMD integrated TPM V2.0 onboard & socket for optional TPM module
- WideRange internal/external DC input (8 V - 36 V)
- HW watchdog onboard
- RS-232/485/422 support onboard
- MS Windows 10, Linux-64
- Mini-ITX: 170 x 170 mm
- Operating temperature: 0°C...70°C
Kontron is a global leader in embedded computing technology and a sought-after consultant for the realization of business models and applications tailored to the Internet of Things. Thanks to its extensive portfolio of hardware, software and service solutions, Kontron achieves the optimum for the respective customer applications. This allows them to focus fully on their core competencies.
Kontron and its R&D staff are developing many of the standards that are driving the world of embedded computing platforms forward. These pioneering technologies and applications not only enable new business models, but also change and enrich the lives of millions of people. The result is faster time-to-market, lower total cost of ownership, long-term availability, and holistically optimized applications based on leading, highly reliable embedded technology.
Motherboard Versions:
D3713-V1
- AMD Embedded V1202B SoC
- Graphis Radeon Vega: GPU @1.0 GHz (3x Compute Units; bis zu 4 Displays)
- Memory: DDR4-2400 (ECC supported)
D3713-V2
- AMD Embedded V1605B SoC
- Graphis Radeon Vega: GPU @1.1 GHz (8x Compute Units; bis zu 4 Displays)
- Memory: DDR4-2400 (ECC supported)
D3713-V4
- AMD Embedded V1807B SoC
- Graphis Radeon Vega: GPU @1.3 GHz (11x Compute Units; bis zu 4 Displays)
- Memory: DDR4-3200 (ECC supported)
D3713-R2
- AMD Embedded R1305G SoC
- Graphis Radeon Vega: GPU @1.0 GHz (3x Compute Units; bis zu 3 Displays)
- Memory: DDR4-2400 (ECC supported)
D3713-R4
- AMD Embedded R1606G SoC
- Graphis Radeon Vega: GPU @1.2 GHz (3x Compute Units; bis zu 3 Displays)
- Memory: DDR4-2400 (ECC supported)
