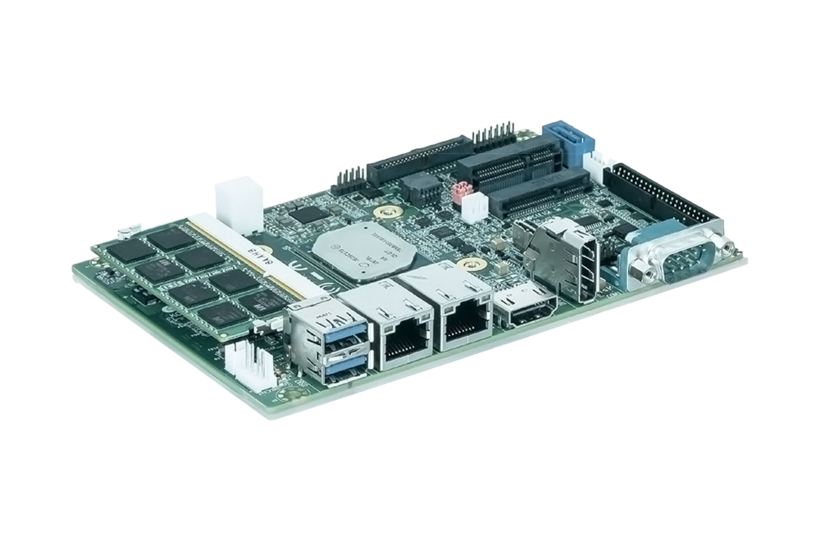

3,5"-SBC-APL
Embedded 3,5" Motherboard with Intel ATOM E39xx Series and Celeron N3350 CPUs
The 3.5" SBC-APL is specifically designed for performance-intensive applications and supports the extended temperature range of 0°C to + 60°C. With its outstanding graphics performance, the board can drive up to three independent displays. It also offers excellent performance-per-watt ratio and optimized Thermal Design Power (TDP). The ATX-compatible motherboard offers extensive capabilities, allowing developers to design the most demanding systems based on standard components.
- Processor: Intel Atom E39xx series and Celeron N3350
- Main memory: 1x DDR3L 1.35V SODIMM 1867 MHz (up to 8GB)
- Graphics controller: 3x independent displays (DP/HDMI/LVDS)
- Special features: TPM, Hardware Security, eMMC NAND Flash Built-In
- SATA: 1x SATA Gen 2.0
- Mini PCI: 2x (1x half size, 1x full size)
- Connections: 1x RS232/RS422/RS485 (external), 1x RS232 (internal)
- Connectivity: 2x RJ-45 LAN port (with transformer & 2 LED indicators)
- USB: 2x USB 3.0 (rear), 2x USB 2.0 (internal)
- Audio: HD Analog Audio Interface (Line-In/Line-Out/SPK-Out)
- Power supply: 12 VDC + 4-pin (internal input power)
- EMI & Safety: IEC 60950-1: 2005
- Cooling: Passive and active cooling solutions
- Operating temperature: 0°C to 60°C
- Compliance: Emission EN55022
- Dimensions (HxWxD): 3.5 "
- Operating system: Win10, Win10 IOT, Linux
- BIOS: AMI Aptio V UEFI
