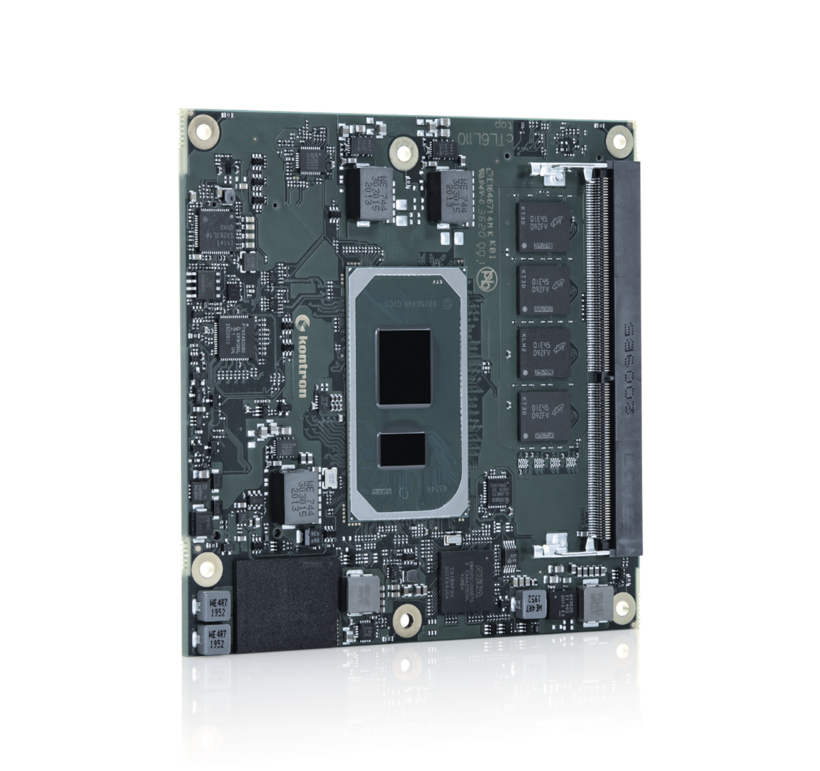

COMe-cTL6(E2)
COM Express Compact Type 6 with 11th Generation Intel Core/Celeron Processors
- Up to 48 GByte DDR4 memory (16 GByte DDR4 memory down)
- Up to 2.5 Gb Ethernet with TSN support
- Optional NVMe SSD onboard
- Industrial grade versions
- COM Express® Compact Pin-out Type 6
- Dimensions (H x W x D): 95 x 95 mm
- CPU: Intel® 11th Generation CoreTM / Celeron® family
- Chipset Integrated SoC
- Main Memory: 1x DDR4 SO-DIMM up to 32 GByte, 2nd channel DDR4 memory down up to 16 GByte
- Graphics Controller: Intel® Iris®Xe Graphics on i7/i5 processors Intel® UHD Graphics on i3 processors
- Ethernet Controller: Intel® UHD Graphics on i3 / Celeron® processors
- Ethernet: Up to 2.5Gb Ethernet with TSN support (depending on SKU)
- Storage: 2x SATA 6Gb/s
- Flash Onboard: Up to 1 TByte NVMe SSD (on request)
- PCI Express / PCI support: 5x PCIe 3.0 (On request: 6x without Ethernet, up to 8x without Ethernet & SATA) 1x4 PCIe 4.0 on PEG Lanes #0-3
- Display DDI1: DP++, DDI2: DP++, DDI3: DP++, VGA: -, LVDS: Dual Channel 18/24bit
- USB: 4x USB 3.1 (incl. USB 2.0) + 4x USB 2.0
- Serial: 2x serial interface (RX/TX only)
- Audio: High Definition Audio interface
- Special Features: POSCAP capacitors, Trusted Platform Module TPM 2.0
- Power Management: ACPI 6.0
- Power Supply: 8.5V - 20V Wide Range, Single Supply Power
- BIOS: AMI Aptio V
- Operating System: Windows®10, Linux, VxWorks
- Temperature
- Commercial temperature: 0 °C to +60 °C operating, -30 °C to +85 °C non-operating
- Extended temperature: -25 °C to +75 °C operating, -30 °C to +85 °C non-operating
- Industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
Kontron is a global leader in embedded computing technology and a sought-after consultant for the realization of business models and applications tailored to the Internet of Things. Thanks to its extensive portfolio of hardware, software and service solutions, Kontron achieves the optimum for the respective customer applications. This allows them to focus fully on their core competencies.
Kontron and its R&D staff are developing many of the standards that are driving the world of embedded computing platforms forward. These pioneering technologies and applications not only enable new business models, but also change and enrich the lives of millions of people. The result is faster time-to-market, lower total cost of ownership, long-term availability, and holistically optimized applications based on leading, highly reliable embedded technology.
Product variants:
- COMe-cTL6 E2 i7-1185GRE:
- CPU i7-1185GRE
- PCH integrated
- Mem. Down 16 GByte
- SO-DIMM non-ECC
- Op. Temp. -40 °C - 85 °C
- COMe-cTL6 E2 i5-1145GRE:
- CPU i5-1145GRE
- PCH integrated
- Mem. Down 8 GByte
- SO-DIMM non-ECC
- Op. Temp. -40 °C - 85 °C
- COMe-cTL6 E2 i3-1115GRE:
- CPU i3-1115GRE
- PCH integrated
- SO-DIMM non-ECC
- Op. Temp. -40 °C - 85 °C
- COMe-cTL6 i7-1185G7E:
- CPU i7-1185G7E
- PCH integrated PCH
- Mem. Down 16 GByte
- SO-DIMM non-ECC
- Flash 1 TByte
- Op. Temp. 0°C - 60°C
- COMe-cTL6 i7-1185G7E:
- CPU i7-1185G7E
- PCH integrated
- Mem. Down 16 GByte
- SO-DIMM non-ECC
- Op. Temp. 0°C - 60°C
- COMe-cTL6 i7-1185G7EL:
- CPU i7-1185G7E
- PCH integrated
- SO-DIMM non-ECC
- Op. Temp. 0°C - 60°C
- COMe-cTL6 i5-1145G7E:
- CPU i5-1145G7E
- PCH integrated
- Mem. Down 8 GByte
- SO-DIMM non-ECC
- Op. Temp. 0°C - 60°C
- COMe-cTL6 i5-1145G7E:
- CPU i5-1145G7E
- PCH integrated
- SO-DIMM non-ECC
- Op. Temp. 0°C - 60°C
- COMe-cTL6 i3-1115G4E:
- CPU i3-1115G4E
- PCH integrated
- SO-DIMM non-ECC
- Op. Temp. 0°C - 60°C
- COMe-cTL6 6305E:
- CPU 6305E
- PCH integrated
- SO-DIMM non-ECC
- Op. Temp. 0 °C - 60 °C
