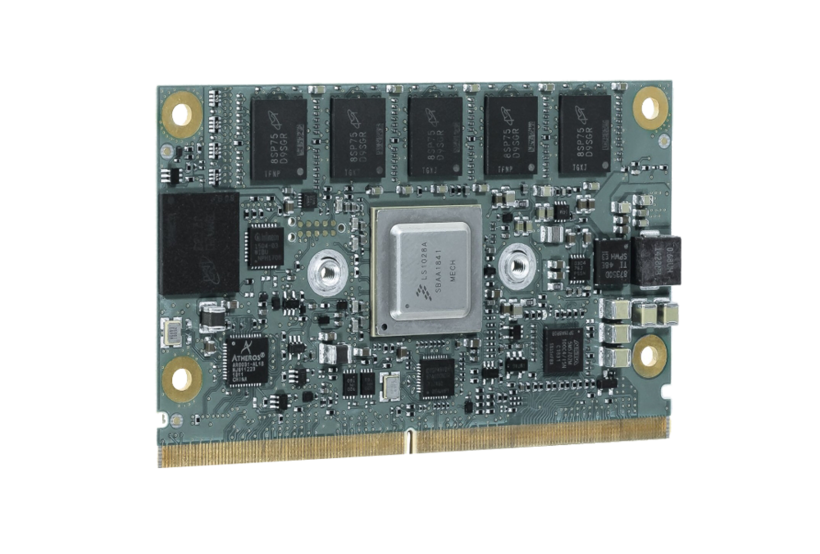

SMARC-sAL28
SMARC module mit NXP LS1028 in short size
Kontron offers for the first time, a SMARC module with up to five integrated TSN-capable 1GB Ethernet ports directly from the controller. It meets IEEE 802.1 TSN (Time Sensitive Networking) specifications, and is therefore ideally suited for use in industrial IoT or industrial 4.0 systems based on Ethernet protocol standards. The module features a NXP Dual Cortex A72 LS1028A processor and a SMARC small form factor 3D GPU and is perfect for use at industrial temperatures according to category E2 between -40°C and +85°C.
- Compliance: SMARC 2.1
- Dimensions (H x W x D): 82 x 50 mm
- CPU: NXP Dual Cortex A72 LS1028A processor
- Memory: up to 8 GByte DDR3L (ECC)
- Ethernet: up to 2x 10/100/1000 MBit Ethernet
- Flash Onboard: 2-64 GByte eMMC 5.1
- PCI Express / PCI support: Up to 2x PCIe x1 or 2x PCIe x2 or 1x PCIe x4
- Panel signal: 1x DP, alternativly eDP or LVDS as BOM option
- Display: DP/eDP/LVDS (BOM option)
- USB: up to 6x USB 2.0, 1x USB 3.0
- Serial: 3x serial interfaces (2x RX / TX only
- Operating System: Yocto Linux
- Power Supply:
- 3 V – 5.25 V operates directly from single level Lithium Ion cells or fixed
- 3.3 V – 5 V power supplies
- Temperature
- Operating: -40 °C to + 85 °C
- Non-Operating: -40 °C to +85 °C
Kontron is a global leader in embedded computing technology and a sought-after consultant for the realization of business models and applications tailored to the Internet of Things. Thanks to its extensive portfolio of hardware, software and service solutions, Kontron achieves the optimum for the respective customer applications. This allows them to focus fully on their core competencies.
Kontron and its R&D staff are developing many of the standards that are driving the world of embedded computing platforms forward. These pioneering technologies and applications not only enable new business models, but also change and enrich the lives of millions of people. The result is faster time-to-market, lower total cost of ownership, long-term availability, and holistically optimized applications based on leading, highly reliable embedded technology.
