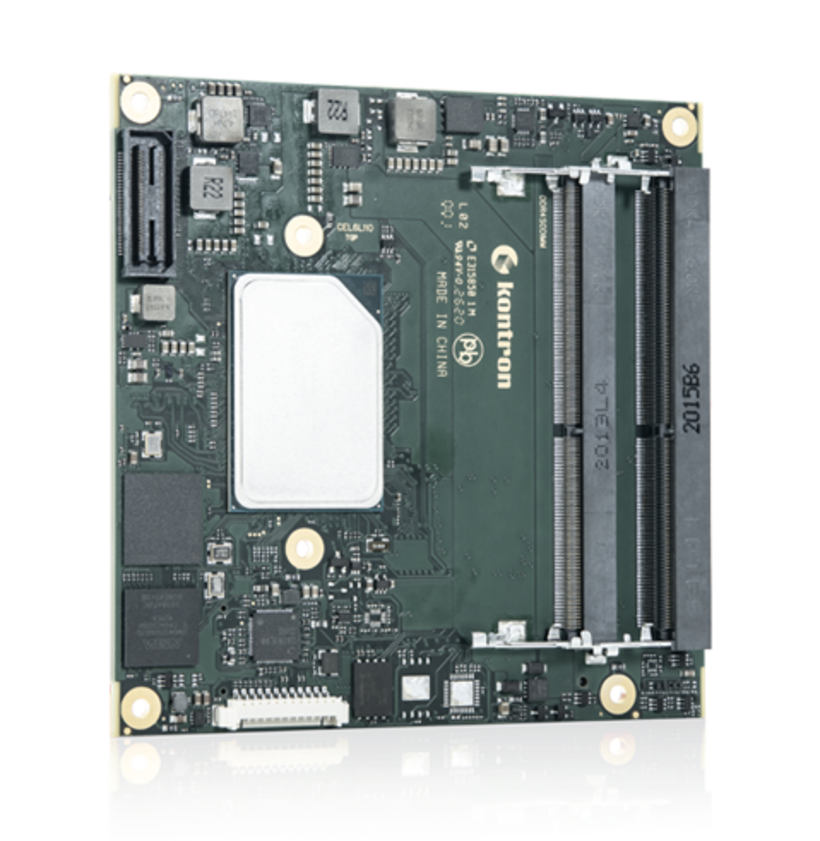

COMe-cEL6(E2)
COM Express Compact Type 6 with Intel Atom X6000E, Pentium and Celeron Series
The COMe-cEL6 COM Express compact Type 6 module is highly scalable and covers the entire range of Intel's x6000 IoT-ready embedded processors. The COMe-cEL6 portfolio range from a cost optimized dual-core Intel Celeron (2x 1.2 GHz with 6W TDP) iteration optimized for energy-sensitive applications to genuine quad-core Intel Atom (4x 1.9 with 12W TDP) versions for high-end real-time applications.
Users benefit from a significantly improved computing performance, an impressive performance-per-watt ratio and the long-term availability inherent in all Kontron embedded solutions.
- COM Express® compact, Pin-out Type 6
- Dimension (H x W): 95 x 95 mm
- CPU COMe-cEL6:
- Intel® Celeron® J6413, 4C, 1.8/3.0GHz, 16EU, 10W
- Intel® Pentium® J6426, 4C, 2.0/3.0GHz, 32EU, 10W
- Intel® Celeron® N6211, 2C, 1.2/3.0GHz, 16EU, 6.5W
- Intel® Pentium® N6415, 4C, 1.2/3.0GHz, 16EU, 6.5W
- CPU COMe-cEL6 E2:
- Intel® Atom® x6211E, 2C, 1.3/3.0GHz, 16EU, 6W
- Intel® Atom® x6413E, 4C, 1.5/3.0GHz, 16EU, 9W
- Intel® Atom® x6425E, 4C, 2.0/3.0GHz, 32EU, 12W
- Intel® Atom® x6212RE, 2C, 1.2GHz/-, 16EU, 6W
- Intel® Atom® x6414RE, 4C, 1.5GHz/-, 16EU, 9W
- Intel® Atom® x6425RE, 4C, 1.8GHz/-, 32EU, 12W
- Chipset: Integrated in SOC
- Main Memory: Up to 32 GByte DDR4-3200 via 2x SODIMM sockets (In-Band ECC)
- Graphics Controller: Intel® HD Gfx Gen11: 1x LVDS/eDP (3840 x 2160 @ 60 Hz) 2x DP (++) on DDI1/DDI2 up to 4K
- Ethernet Controller: SOC + LAN PHY GPY115 (GPY215 on request)
- Ethernet: 1GBit Ethernet (2.5GBit on request with GPY215)
- Storage: 2x SATA 6Gb/s, SDIO Interface (shared with GPIO)
- Flash Onboard: eMMC option – up to 128GB eMMC MLC
- PCI Express: 6x PCIe Gen 3.0 lanes - PCIe lane configurations: 1 x4 /2 x2 / 4 x1 + 1 x2 / 2 x1
- Display: DDI 1/2: DP++, LVDS: Dual Channel up to 48-bit or eDP on request
- USB:
- Default: 2x USB 3.1 (incl. USB 2.0) + 6x USB 2.0
- Option: 4x USB 3.1 (incl. USB 2.0) + 4x USB 2.0
- USB 2.0 port7 does support dual role (Client/Host)
- Serial: 2x serial interface (RX/TX only)
- Audio: Intel® High Definition Audio
- Common Features: SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC
- Special Features: Industrial grade temperature
- Options:
- eMMC Flash configuration (up to 64 GByte pSLC, up to 128 GByte MLC)
- eDP instead of LVDS
- General Purpose SPI instead of Boot SPI
- eSPI instead of LPC to the COMe connector
- 4x USB3.1 w/ add USB-Hub instead of 2x USB 3.1
- USB client, Trusted Platform Module TPM 2.0, de-populated LAN PHY
- Power Management: ACPI 6.0
- Power Supply: 8.5V - 20V Wide Range, Single Supply Power
- BIOS: AMI Aptio V
- Operating System: Windows® 10, Linux, VxWorks
- Temperature:
- COMe-cEL6 - commercial temperature: 0° C to +60° C operating, -30° C to +85° C non-operating
- COMe-cEL6 E2 - industrial temperature: -40° C to +85° C operating, -40° C to +85° C non-operating
Kontron is a global leader in embedded computing technology and a sought-after consultant for the realization of business models and applications tailored to the Internet of Things. Thanks to its extensive portfolio of hardware, software and service solutions, Kontron achieves the optimum for the respective customer applications. This allows them to focus fully on their core competencies.
Kontron and its R&D staff are developing many of the standards that are driving the world of embedded computing platforms forward. These pioneering technologies and applications not only enable new business models, but also change and enrich the lives of millions of people. The result is faster time-to-market, lower total cost of ownership, long-term availability, and holistically optimized applications based on leading, highly reliable embedded technology.
Product variants:
- COMe-cEL6 E2 x6212RE:
- CPU x6212RE
- SO-DIMM Inband-ECC
- ETH PHY 1 GbE
- 2x USB 3.1
- LPC, LVDS
- Op. Temp. -40 °C - 85 °C
- COMe-cEL6 E2 x6414RE:
- CPU x6414RE
- SO-DIMM Inband-ECC
- ETH PHY 1 GbE
- 2x USB 3.1
- LPC, LVDS
- Op. Temp. -40 °C - 85 °C
- COMe-cEL6 E2 x6425RE:
- CPU x6425RE
- SO-DIMM Inband-ECC
- ETH PHY 1 GbE
- 2x USB 3.1
- LPC, LVDS
- Op. Temp. -40 °C - 85 °C
- COMe-cEL6 N6211:
- CPU N6211
- SO-DIMM non-ECC
- ETH PHY 1 GbE
- 2x USB3.1
- LPC, LVDS
- Op. Temp. 0°C - 60°C
- COMe-cEL6 J6426:
- CPU J6426
- SO-DIMM non-ECC
- ETH PHY 1 GbE
- 2x USB 3.1
- LPC, LVDS
- Op. Temp. 0°C - 60°C
