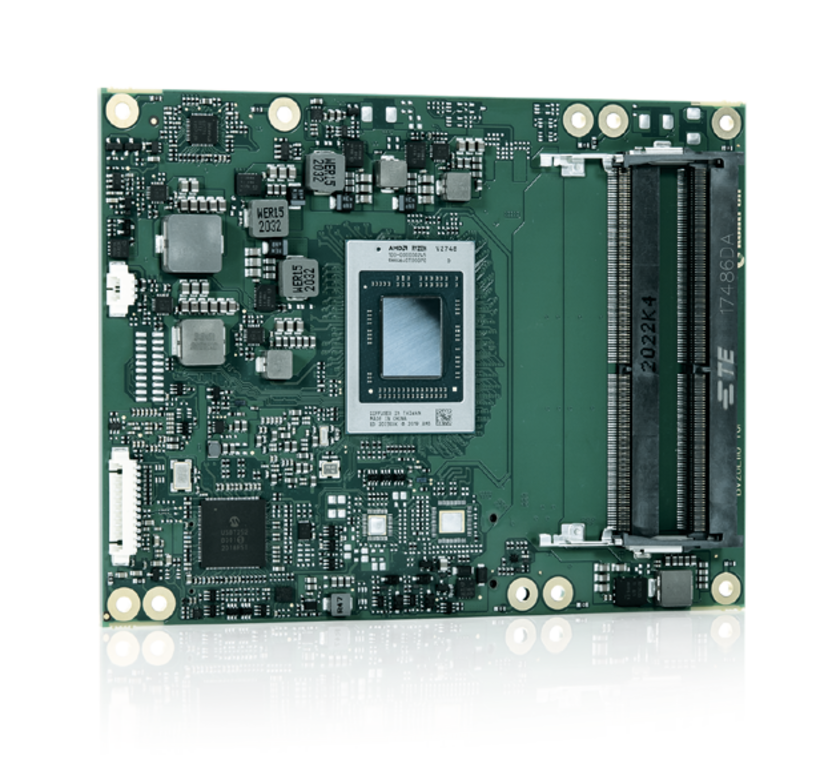

COMe-bV26
COM Express® Basic V2000 with AMD Embedded V-Series high-performance “Zen2” CPU
- Up to 64 GByte DDR4 memory (2x 32 GByte dual-channel DDR4 SO-DIMM)
- Up to 8 PCIe lanes (4x PCIe 3.0 (up to 8 GT/s) 4x PCIe 2.0 (up to 5 GT/s))
- Optional up to 1 TByte NVMe SSD onboard
- Industrial grade versions available
- COM Express® basic pin-out type 6
- (H x W x D) 95 x 125 mm
- CPU: AMD Embedded V-Series V2000 SoCs:
- AMD V2748, 8x 2.9 GHz, 35-54 W
- AMD V2718, 8x 1.7 GHz, 12-25 W
- AMD V2546, 6x 3.0 GHz, 35-54 W
- AMD V2516, 6x2.1 GHz, 12-25 W
- Chipset Integrated in SoC
- Memory: 2x DDR4 SO DIMM (up to 32 GByte per channel)
- Graphics: AMD “Vega7” Core GPU with up to 7 Compute Units
- Ethernet: Intel® i225
- Storage: 2x SATA 6Gb/s
- Flash Onboard: Up to 1 TByte NVMe SSD (on request)
- PCI Express:
- 4x PCIe 3.0 (up to 8 GT/s)
- 4x PCIe 2.0 (up to 5 GT/s) via PCIe switch
- 1x PEG x8
- Display: DP++, DDI2: DP++, DDI3: DP++, VGA: -, LVDS: Dual Channel 18/24bit
- USB: 4x USB 3.1 + 8x USB 2.0
- SERIAL 2x serial interface (RX/TX only)
- Audio:
- Default Audio support
- Baseboard Audio with external HAD Codec on carrier
- Power Management: OS ACPI PM support for critical shutdown
- Power Supply: 8.5 V – 20 V Wide Range, Single Supply Power
- BIOS: AMI UEFI (incl. support for AMI tools)
- OS: Windows®10, Linux (Yocto based)
- Temperature:
- Commercial temperature: 0 °C to +60 °C operating, -30 °C to +85 °C non-operating
- Extended temperature: -25 °C to +75 °C operating, -30 °C to +85 °C non-operating
- Industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
