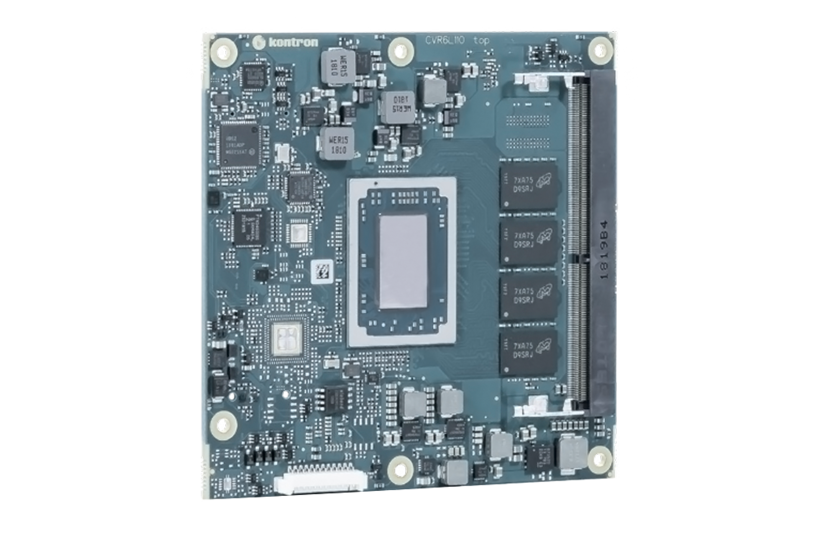

COMe-cVR6 (E2)
COM Express® Compact Type 6 with AMD Ryzen™ Embedded V/R1000 APUs
The COMe-cVR6 (E2) deliver a new generation of high-performance, feature-rich Computer-on-Modules based on the standardized COM Express® compact form factor and AMD’s Ryzen Embedded V/R-Series processors. Through the use of consistent COM Express connectors and feature implementation, the COMe-cVR6 is easily exchangeable and offers the most flexibility for customers designing it into their embedded devices based on individual carrier boards.
Besides the high-performance graphics on a SOC level, the COMe-cVR6 offers the option to additionally or alternatively use soldered memory. As a result, the module supports a total of up to 48 GB RAM or provides more thermal and mechanical resistance with up to 16 GB memory down.
Thanks to the fixed connection, soldered memory modules are better to cool and stay in reliable contact even when exposed to extreme vibrations or shocks. Therefore, customers can choose between more storage or greater ruggedness.
- COM Express® compact Pin-out Type 6
- Dimensions (H x W x D): 95 x 95 mm
- CPU
- AMD V1807B, 4x 3.35 GHz (3.75 GHz), 35-54W
- AMD V1756B, 4x 3.25 GHz (3.6 GHz), 35-54W
- AMD V1605B, 4x 2.0 GHz (3.6 GHz), 12-25W
- AMD V1202B, 2x 2.5 GHz (3.4 GHz), 12-25W
- AMD V1404I, 4x 2.0 GHz (3.6 GHz), 12-25W
- AMD R1606G, 2x 2.6 GHz (3.5 GHz), 12-25W
- AMD R1505G, 2x 2.4 GHz (3.3 GHz), 12-25W
- Chipset: Integrated SoC
- Memory: 1x DDR4 SO-DIMM up to 16 GByte, 2nd channel DDR4 memory down up to 16 GByte (non-ECC/ECC)
- Graphics Controller: Integrated AMD Vega Graphics (GFX9)
- Ethernet
- Intel® I210/I211
- 10/100/1000 MBit Ethernet
- Hard Disk: 2x SATA 6Gb/s
- PCI Express / PCI support:
- Up to 5x PCIe 3.0 (On request: 6x without Ethernet)
- On request: Up to 8x PCIe x1 with 4x PCIe 3.0 + 4x PCIe 2.0
- Up to 1x PEG x8
- Panel signal
- DDI1: DP++, DDI2: DP++, DDI3: DP, VGA: -,
- LVDS: Dual Channel 18/24 bit
- USB: 3x USB 3.x (incl. USB 2.0) + 5x USB 2.0
- Serial: 2x serial interface (RX/TX only)
- Audio: High Definition Audio interface
- BIOS: AMI Aptio V
- Power Management: ACPI 6.0
- Power Supply: 8.5 V – 20 V Wide Range, Single Supply Power
- Operating System: Windows® 10, Linux
- Temperature
- COMe-cVR6 - commercial temperature:
- 0 °C to +60 °C operating, -30 °C to +85 °C non-operating
- COMe-cVR6 E2 - industrial temperature:
- -40 °C to +85 °C operating, -40 °C to +85 °C non-operating
