Sona NX611
WiFi 6 + Bluetooth 5.3 Module
Introducing the latest of the Sona Wi-Fi 6 product line from Laird Connectivity, the NX611, based upon NXP’s leading IW611 Wi-Fi 6 chipset. A truly robust industrial IoT module: one that’s rugged, small, globally certified, has reliable connectivity, and is easy to integrate.
The new Sona NX611 answers the call for next-gen wireless IoT. The Sona™ NX611 is purpose-built for industrial IoT connectivity with access to SDIO and HS-UART host interfaces, industrial operating temp range, latest generation Wi-Fi and BT combined with a small form factor SIP, pluggable M.2 2230 type E card and SMT M.2 packaging.
- Wireless Specification
- Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Bluetooth v5.3 (BDR + EDR + BLE)
- Frequency: 2.4 and 5 GHz
- Chipset (Wireless): NXP IW611
- Antenna Options: RF Antenna Pin (Up to 2x) / Onboard MHF4 Connector (Up to 2x) / Integrated Chip Antenna (Up to 1x)
- Certifications: FCC/IC/CE/UKCA/RCM/MIC (Pending)
- Data Rate
- Up to 287 Mbps @ 2.4 GHz
- Up to 600 Mbps @ 5 GHz

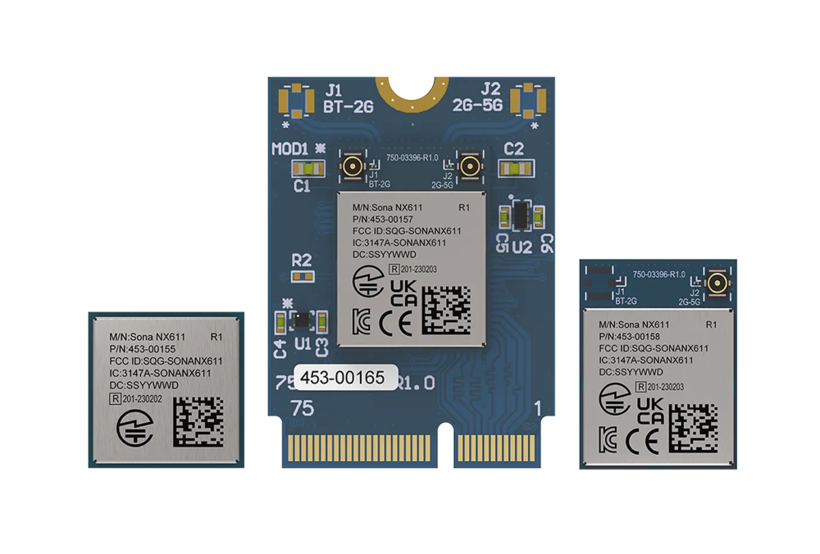

- Form Factor
- SIP Package
- M.2 1216 SMT
- M.2 2230 Key E Pluggable
- Interfaces – General: SDIO 3.0 (Wi-Fi), HS-UART (BT), PCM (BT Audio)
- Operating Temp (°C): -40 °C - +85 °C
