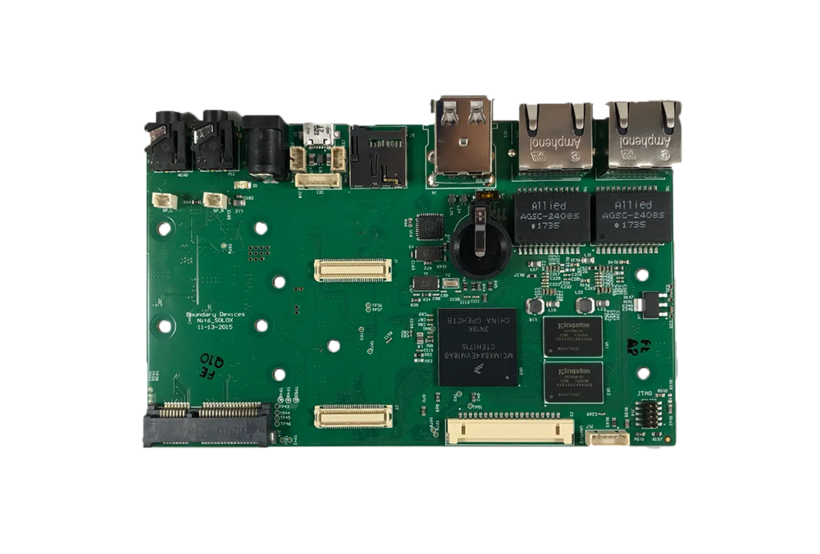

Nitrogen6 SoloX SBC
Multi-purpose i.MX6 SBC based on the i.M6 SoloX processor from NXP
The Nitrogen6 SoloX is a multi-purpose i.MX6 single board computer based on the i.M6 SoloX processor from NXP. It includes an accessory kit option with a 5V Power Supply, 8GB microSD card with Linux OS, Battery, and Serial Console Cable. The Nitrogen6 SoloX is designed for mass production use with a guaranteed 10 year lifespan, FCC Pre-scan results, and a stable supply chain. Industrial temperature and conformal coating options are available. It can be modified by de-populating unused components or fully customized for cost reduction.
- Chipset (MPU): x1 Cortex-A9 @ 1 GHz (via NXP i.MX6 SoloX processor)
- Chipset (MCU): x1 Cortex-M4 (via NXP i.MX6 SoloX processor)
- Dimensions (L x W): 130 x 80
- Wireless Specification: Optional wireless via daughterboard
- Audio: Input/Output
- Camera: 1 CSI, 1 NTSC via daughter board
- Display: HDMI, LVDS, RGB
- Form Factor: Single Board Computer
- Interfaces - General
- 1x PCIe (onboard with SIM card option)
- x3 USB Host, x1 USB OTG
- 2x GbE
- 2x I2C
- SPI via expansion connector
- 2x RS-232 + 2x TTL to daughter board
- Memory: 1GB DDR3L
- Operating Temperature: 0° - +70°C (-40°C – +85°C optional)
- Storage: 4GB. Optional: up to 128 GB
