RM126x
Ultra-Low Power LoRaWAN Module
The Laird Connectivity RM126x series of modules (RM1261 and RM1262) is based on Silicon Labs EFR32 SoC and the Semtech SX126x radio. They provide a low power, long range solution for you to easily develop your LoRaWAN implementation. The RM126x series supports LoRaWAN classes A, B and C, and also includes a LoRa Point to Point (LoRa P2P) capability which enables you to create your own private ultra-long range radio network between two RM126x modules.

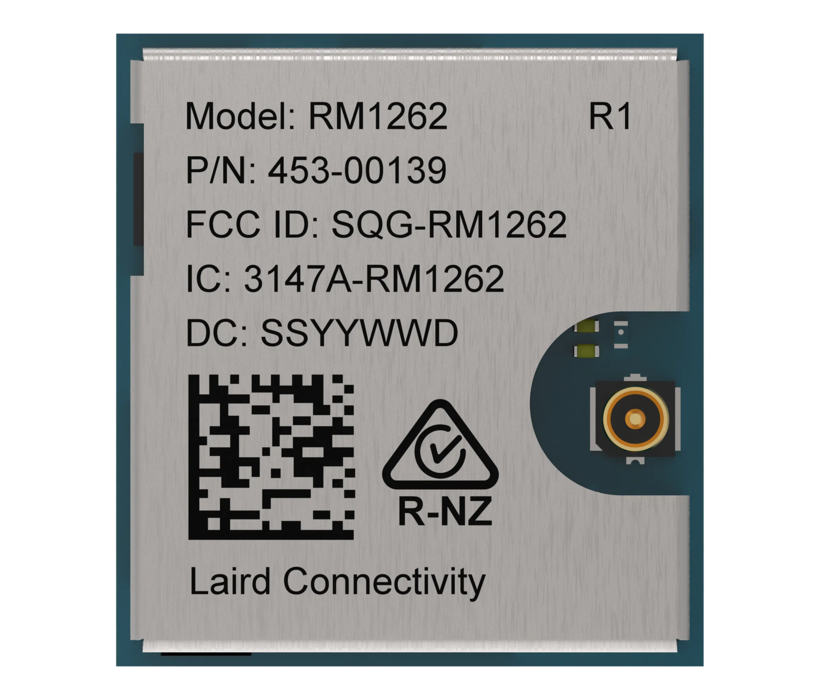

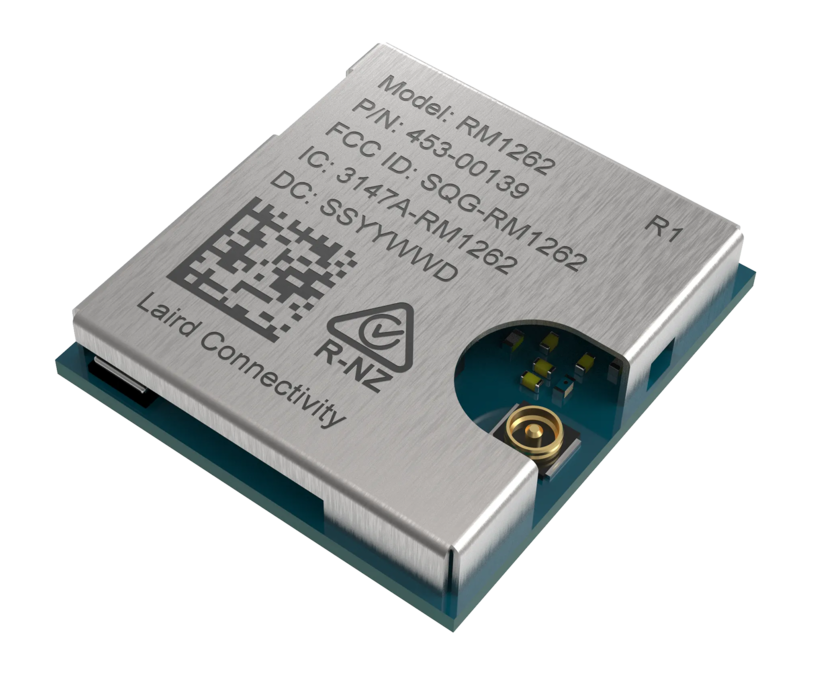

The RM126x series modules are small form factor PCB modules with a built in MHF4 connector, TCXO and a DC-DC converter. The module is designed to operate in both hosted and hostless modes.
- Chipset (MCU): Silicon Labs EFM32
- Dimensions (L x W x H): 14 x 13 x 2
- Connector: MHF4
- Certifications
- RM1262: FCC, ISED, AS/NZS
- RM1261: EU, UKCA, NCC, MIC, IN
- Data Rate
- LoRa 125kHz
- LoRa 250kHz
- LoRa 500kHz
- FSK 50kbps (as per RP002-1.0.3 )
- Frequency Range: 863 MHz - 870 MHz
- Frequency Range 2: 902 MHz - 928 MHz
- LoRa Version Class: Version V1.0.4 LoRa MAC Class A,B & C
- Operating Temp (°C): -40 °C - +85 °
