Nitrogen8M SOM
SoM with i.MX 8M processors from NXP

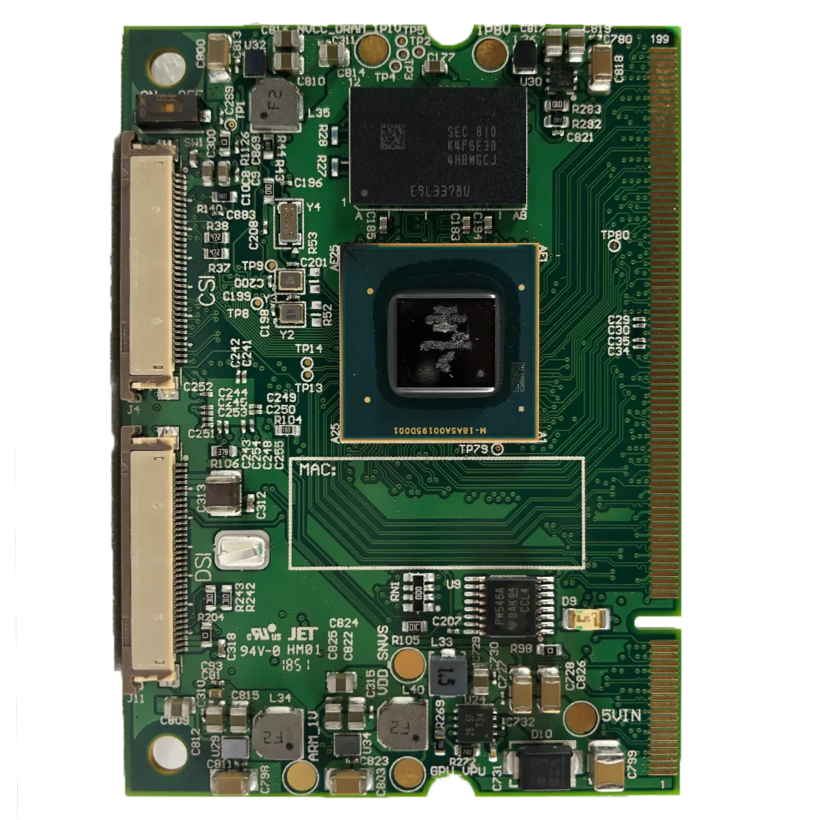

The Nitrogen8M System on Module (SOM) is the latest i.MX based Nitrogen platform, leveraging the i.MX 8M processors from NXP. The RAM (2-4GB) and eMMC (16-64) can be modified to fit your requirements. The Nitrogen8M SOM is designed for mass production use with a guaranteed 10 year lifespan, FCC Pre-scan results, and a stable supply chain. Industrial temperature and conformal coating options are available.
- Chipset (MPU): 4x Cortex®-A53 cores @ 1.6 GHz (NXP I.MX 8M)
- Chipset (MCU): 1x Cortex®-M7 core @ 800 MHz (NXP I.MX 8M)
- Wireless Specification
- Wi-Fi 5 (802.11ac)
- Bluetooth 5.3
- Dimensions (L x W): 67.6 x 48.4
- Audio: Input/Output
- Camera: 2x MIPI-CSI
- Display: MIPI-DSI, HDMI
- Form Factor: Edge connector
- Interfaces - General
- 2x PCIe
- 2x USB3/USB2
- 1x GbE
- I2C
- SPI
- UART
- GPIO
- Memory: 2GB or 4GB LPDDR4
- Operating Temp (°C): -40 °C - +85 °C
- SPI: x1 (via Carrier)
- Storage: 16 or 128 GB
- UART: Up to 4 (via Carrier)
- USB: x4 USB 3.0 (via Carrier)
