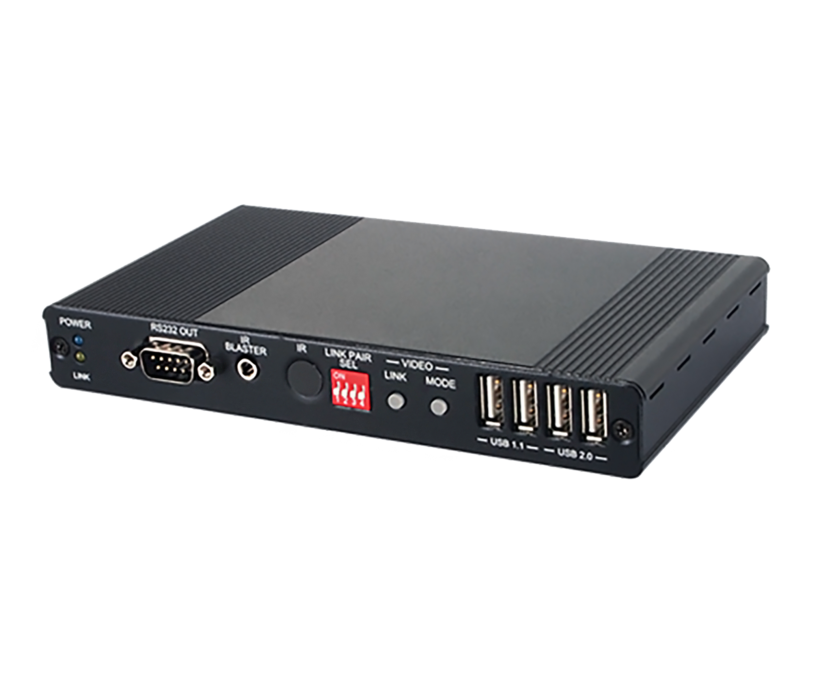

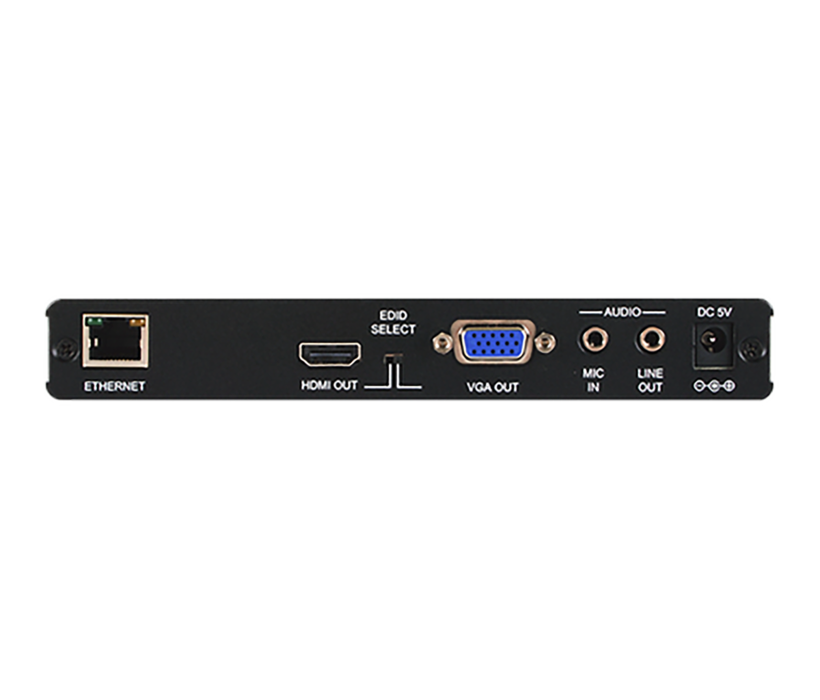

CH-U330RX
4K UHD Multi-Function Reciever with Video over IP and KVM
This 4K UHD Multi-Function Extender with KVM over TCP/IP allows you to transmit HDMI or VGA signals over Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz 4:4:4 or 4K@60Hz 4:2:0) along with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. This system is perfect for both residential and commercial installation environments. This system also features bi-directional IR and RS-232 pass-through, analog line level in/out, and a microphone input (on the Receiver), providing the user with a variety of audio options. The USB functionality allows the system to act like a remote USB hub which, when combined with the VGA input/output feature, provides a flexible remote KVM platform. Configuration information is provided via On Screen Display (OSD) and control is by WebGUI and front panel controls.
- HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2/1.4 compliant
- 1×HDMI input and output, 1×VGA input and output & 1×VGA bypass output
- Video, audio and control transmission over TCP/IP
- HDMI input resolutions up to 4K@60Hz (YUV 4:2:0) or 4K@30Hz (YUV 4:4:4)
- HDMI output resolutions up to 4K@30Hz (YUV 4:4:4)
- 4K@50/60Hz (YUV 4:2:0) sources are automatically converted to 4K@25/30Hz (YUV 4:4:4) for output
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- Audio line in on Transmitter sends audio to the line out on connected Receivers
- Microphone input on Receiver for transmission to the Transmitter
- Supports USB keyboard and mouse extension
- Supports IR and RS-232 bypass
- Device has an info OSD and can be controlled via WebGUI and front panel controls
Cypress Technology is a specialist in processing audio and video signals. A strong development team develops and manufactures equipment for dealing with high-resolution and multi-media signals. The product line includes extenders, converters for format conversion and matrices to distribute multiple inputs to multiple outputs. The products are used in a wide variety of applications: industrial, medical, advertising, monitoring, security and broadcasting.
Cypress Technology is based in Taiwan, was established in 1989 and is specialized on developing and producing innovative audio/video solutions. Cypress Technology is recognized as a pioneer in the AV industry, offering a comprehensive range of international products. Based on many years of experience in the audiovisual field, Cypress Technology is able to develop customized products and invest in continuous research, development and testing of new HDMI technologies.
