CH-2606TX

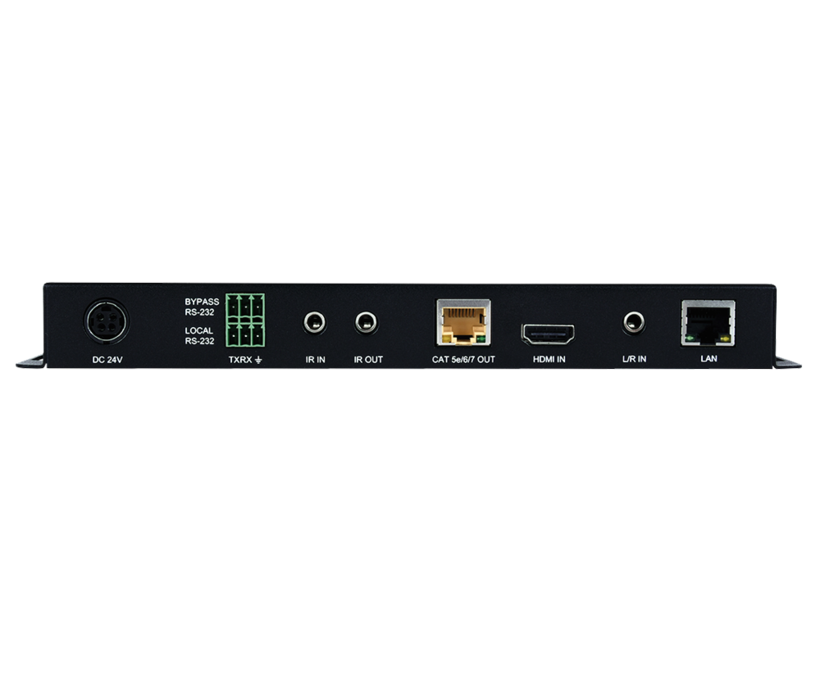

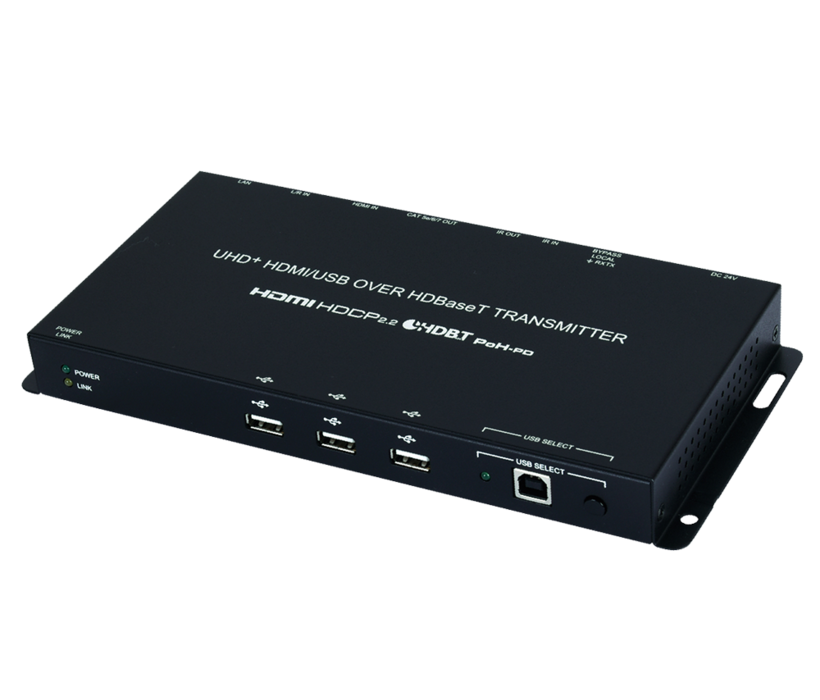

UHD+ HDMI to HDBaseT Transmitter with USB
CH-2606TX adopts HDBaseT 2.0 technology for extending uncompressed 4K and HD video, audio, Ethernet, control and power along a single Cate. 5e/6/7 cable up to 100 meters. When paired with this unit’s standard Receiver, 2 switchable USB 2.0 host (Type B) connections are available (1 on the Transmitter, 1 on the Receiver) which can connect to devices on up to 6 USB 2.0 (Type A) ports (3 on the Transmitter, 3 on the Receiver) forming a highly flexible KVM extension configuration (Note: Only 1 USB host may be active at a time). This Transmitter (PD) may be powered locally using a standard power supply, or it can be powered by PoH (Power over HDBaseT) provided by a compatible Receiver (PSE), This unit is controllable via front panel button and RS-232.
- 3 USB 2.0 Type A ports and 1 USB 2.0 Type B port
- HDBaseT output transmits video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/230ft at 4K when using Cat.6a/7
- HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, PoH (PD), and control (bi-directional IR/RS-232/USB 2.0)
- Supports CEC bypass
- Flexible USB host selection using the front panel button
- Note: Multiple USB hosts may be connected at once (up to 2 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
- Supports PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)
