Universal AC/DC capacitors with integrated fuse
E62
In modern power electronics applications, AC capacitors are among the most critical components in terms of service life, safety and reliability.

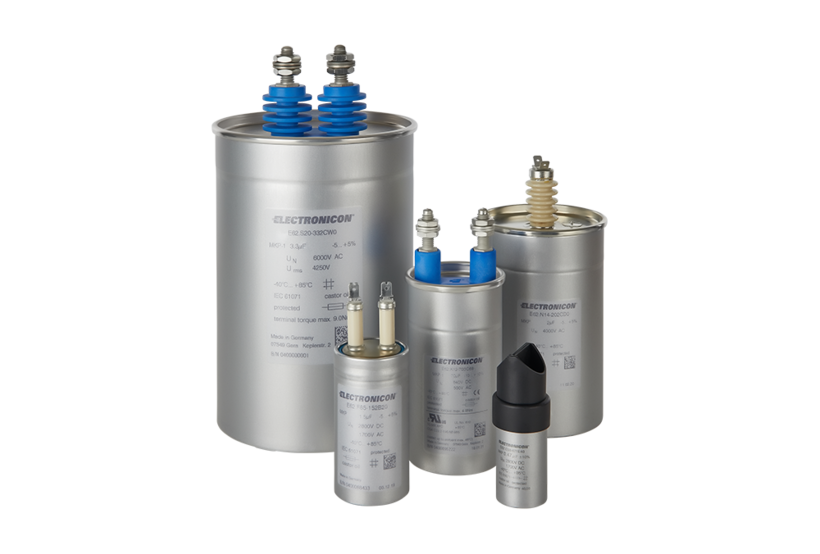

The cylindrical capacitors of the universal AC/DC series "E62" are ideal for use with non-sinusoidal voltages and pulsed currents, e.g. as damping or commutation capacitors, connected in parallel with thyristors or in series with resistors (for damping unwanted voltage peaks during the switching of power semiconductors). They are also used as supporting, smoothing and surge discharge capacitors and in AC voltage filters, among other things. The low dissipation factor of the technologies we use can largely compensate for the losses caused by the non-sinusoidal voltages.
Of course, all AC voltage capacitors are also suitable for DC voltage applications.
The first choice for universal and highly demanding AC and DC voltage applications
The E62s are housed in a hermetically sealed aluminum can, which is filled with ecologically safe vegetable oil as standard; many E62 types are also available with gas filling as an option. The gas filling is not only particularly environmentally friendly, but also allows installation in any position, whereas oil-filled capacitors should always be installed vertically for electrical and environmental reasons.
The excellent self-healing properties of our film metallization and an overpressure mechanism (" BAM ") integrated into the capacitors ensure reliable protection in the event of overload or controlled failure at the end of the service life.
Electronicon offers film capacitors "Made in Germany". From the coating of the film to the winding and manufacturing of the capacitors, the entire process takes place at the plant in Gera. Film capacitors offer various advantages in power electronics and are environmentally friendly in production.
Since the early forties, when SIEMENS&HALSKE AG moved parts of their production from Berlin to East Thuringia in the heart of Germany, capacitors have been manufactured by ELECTRONICON Kondensatoren GmbH (formerly RFT Kondensatorenwerk) in Gera. Highest quality and reliability of all products have been the basis of their company philosophy from the very beginning. Especially since its spin-off from the former East German electrical company RFT/VEB ELEKTRONIK Gera in autumn 1992, ELECTRONICON has succeeded in becoming one of the leading capacitor manufacturers in Europe with worldwide supply relations by continuously expanding and improving its product range. More than 500 qualified engineers and skilled workers produce capacitors and accessories for lighting and drive technology, power electrics and electronics, and power factor correction. Extensive investments in modern and environmentally friendly technologies guarantee the highest standards in manufacturing and quality assurance. The products of ELECTRONICON Kondensatoren GmbH are approved according to the latest standards by international testing institutions. ELECTRONICON's quality assurance system is monitored by TÜV according to ISO 9001. Since 1942 ELECTRONICON has been able to metallize its dielectric materials itself using the latest technologies. This ensures uninterrupted quality assurance from the raw foil to the finished capacitor.
Advantages of ELECTRONICON film capacitors
- No polarity
- No leakage of conductive substances
- No series connection necessary for voltages above 400 V
- Self-healing in case of overload
- Maintenance free, longest life time
- High current carrying capacity (100 mA / µF)
- Low series resistance
- Only a fraction of the capacitance required by electrolytic capacitors
