Minimized low-inductance DC capacitors

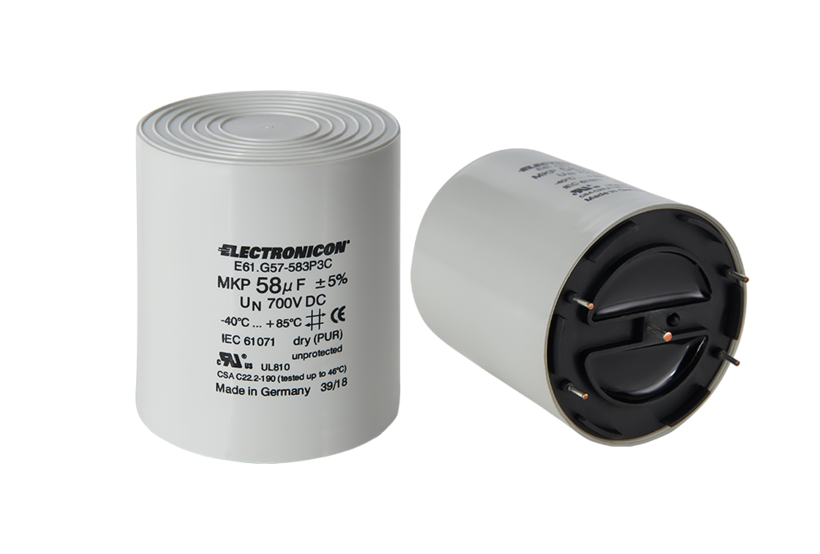

E61
Directly on the busbar of your SiC DC link. Minimized inductance and amazing rated currents, combined with our PK16™ know-how.
Thanks to their particularly low self-inductance and the possibility of direct mounting between the busbar and heat sink, our E61 and E53-H series capacitors are particularly suitable for the high operating frequencies of modern SiC circuits. With continuous currents of up to 75A, they can withstand even the high challenges of your intermediate circuit.
Minimized inductance with direct mounting on printed circuit board or busbar
This series has numerous advantages over electrolytic capacitors:
- higher voltage and current resistance
- Drastic extension of service life
- Minimized power loss, self-inductance and series resistance
- More precise production tolerances
- Elimination of balancing resistors
In addition, E61 makes the efficiency of our highly reliable PK16 technology accessible to intermediate circuits with lower power ratings, where the capacitors can be integrated directly into the PCB.
The windings are encapsulated in an insulating plastic housing with solid resin, the connection is made via robust M6 internal threads (E61-P5, E53-H2), M8 bolts (E53-H1) or PCB-compatible pins (E61-P3).
Electronicon offers film capacitors "Made in Germany". From the coating of the film to the winding and manufacturing of the capacitors, the entire process takes place at the plant in Gera. Film capacitors offer various advantages in power electronics and are environmentally friendly in production.
Since the early forties, when SIEMENS&HALSKE AG moved parts of their production from Berlin to East Thuringia in the heart of Germany, capacitors have been manufactured by ELECTRONICON Kondensatoren GmbH (formerly RFT Kondensatorenwerk) in Gera. Highest quality and reliability of all products have been the basis of their company philosophy from the very beginning. Especially since its spin-off from the former East German electrical company RFT/VEB ELEKTRONIK Gera in autumn 1992, ELECTRONICON has succeeded in becoming one of the leading capacitor manufacturers in Europe with worldwide supply relations by continuously expanding and improving its product range. More than 500 qualified engineers and skilled workers produce capacitors and accessories for lighting and drive technology, power electrics and electronics, and power factor correction. Extensive investments in modern and environmentally friendly technologies guarantee the highest standards in manufacturing and quality assurance. The products of ELECTRONICON Kondensatoren GmbH are approved according to the latest standards by international testing institutions. ELECTRONICON's quality assurance system is monitored by TÜV according to ISO 9001. Since 1942 ELECTRONICON has been able to metallize its dielectric materials itself using the latest technologies. This ensures uninterrupted quality assurance from the raw foil to the finished capacitor.
Advantages of ELECTRONICON film capacitors
- No polarity
- No leakage of conductive substances
- No series connection necessary for voltages above 400 V
- Self-healing in case of overload
- Maintenance free, longest life time
- High current carrying capacity (100 mA / µF)
- Low series resistance
- Only a fraction of the capacitance required by electrolytic capacitors
