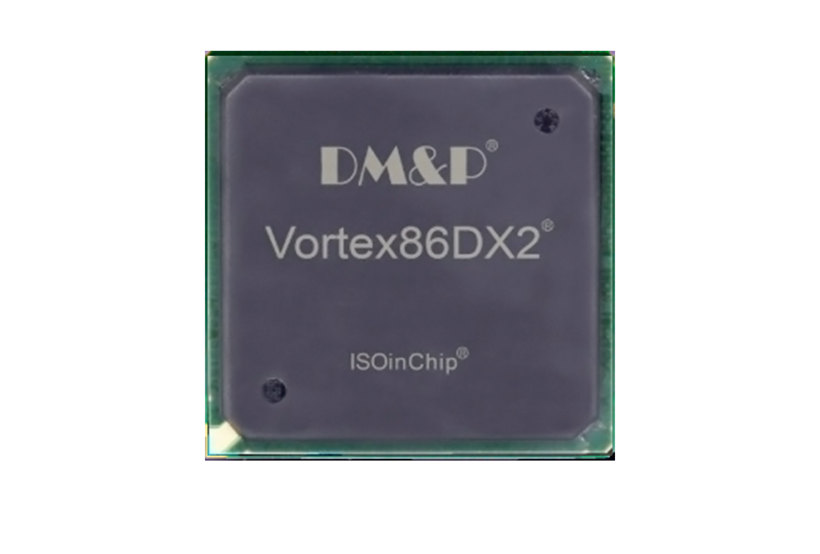

Vortex86DX2 SoC
Single-Chip-PC
The Vortex86DX2 is an x86-compatible System-on-Chip (SoC) manufactured in a 90nm process and designed for extremely low power consumption. It integrates various functions such as multiple I/O ports (RS-232, parallel, USB and GPIO), BIOS, watch dog timer, power management, LAN, a graphics controller and motion control in a single BGA chip.
In its 720-pin BGA package, the Vortex86DX2 packs 32kb L1 cache, 256KB L2 cache, 2.5GHz PCIe bus, DDR3 RAM controller, ISA, I2C, SPI, IPC (Internal Peripheral Controller with DMA and interrupt timer/counter included) Fast Ethernet, UART with FIFO, USB 2. 0 host and IDE/SATA controller to provide an optimal solution for embedded systems and communication products such as thin clients, NAT routers, home gateways, access points and tablet PCs.
- X86 Processor Core
- Floating point unit support
- Embedded I / D Separated L1 Cache
- Embedded L2 Cache
- DDRII Control Interface
- IDE Controller
- SATA Controller
- ADC Interface x 8
- GPU Control Unit
- MAC Controller x 1
- PCIE Control Interface x 2
- ISA Bus Interface
- HDA Controller
- DMA Controller
- Interrupt Controller
- MTBF Counter
- Counter / Timers
- Real Time Clock
- FIFO UART Port x 9 ( 9 sets COM Port )
- • Parallel Port x 1? General Programmable I/O
- USB 2.0 Host Support
- USB 1.1 Device Support
- PS / 2 Keyboard and Mouse Interface Support
- Speaker out
- Redundant System Support
- Embedded 2MB Flash
- I2C bus x 2
- Motor Control Interface Support
- General Shift Interface Support
- JTAG Interface supported for S.W. debugging
- Input clock
- 14.318 MHz
- 32.768 KHz
- Full Deplex SPI bus x 2
- Output clock
- 24 MHZ
- 25 MHz
- PCI clock
- DDRII clock
- Operating Voltage Range
- Core voltage: 1.0 V ± 5%
- I / O voltage:1.2V± 5% , 1.8V ± 5% , 3.3 V ± 10 %
- Package Type: 31x31mm, 720 Ball BGA
DMP Electronics Inc., a member of the DM&P Group, was founded in 1989 and develops industrial control systems. Since the beginning DMP focused on the development of x86-based computer-on-a-chip products. The high level of integration, coupled with low power loss makes the single-chip x86 computers an ideal solution for industrial, control, medical and automation applications.
Eval Board Vortex86DX2
VDX2-6690A is the official evaluation board for the VortexDX2 CPU. The board provides an easy way to evaluate the Vortex86DX2 and most of its build-in I/O functions. Users can change the CPU speed by adjusting the jumper settings to get the desired performance and power consumption of the applications.
Features
- CPU: DM&P Vortex86DX2, 800MHz
- BIOS: AMI BIOS – Core 8
- System Memory: 1G DDR2 Onboard bei 400MHz (DDR2-600)
- Cache: L1:16K I-Cache, 16K D-Cache; L2: 256KB
- Bus Interface: PCIe Bus x 1; MiniPCIe Bus x 1; ISA Bus x 1
- Watchdog Timer: 2 Sets, Software einstellbar von 1 bis 512 Sekunden
- LAN: Build-in R6040, 10/100Mbps Ethernet Controller
- Audio Chip: ALC 262 (HD Audio)
- I/O Interface:
- SATA 1.5G (1 Port) an Secondary Channel
- RS232 port x4
- USB Port x4 (USB 2.0 Version)
- GPIO Ports x10
- PWM Channels
- I2C bus x2
- SPI bus x2
- Redundancy bus
- 10/100Mbps Ethernet Port x1
- Audio, Line-out & Mic-in
- Dimension: 170mm x 170mm (6.69” x 6.69”)
- Power Consumption: 5V @ 1120 mA
- Operating Temperature: -40°C ~ +85°C
