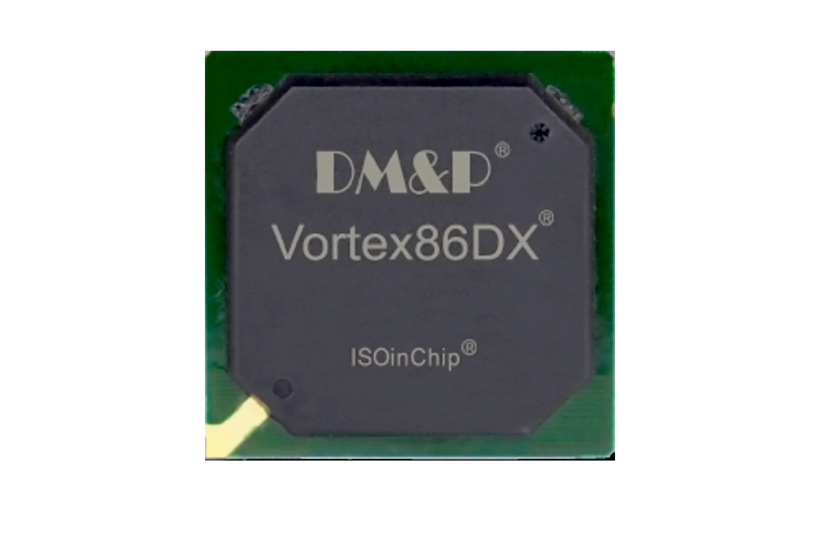

Vortex86DX SoC
System on a chip
The Vortex86DX is an x-86 compatible System-on-Chip (SoC) manufactured and developed in a 90nm process with a power consumption of less than 1 Watt. It integrates various functions such as multiple I/O ports (RS-232, parallel, USB and GPIO), BIOS, watch dog timer, power management, MTBF counter and LAN into a single BGA chip.
In its 581-pin BGA package, the Vortex86DX packs 32kb L1 cache, 256KB L2 cache, PCI rev. 2.1 32-bit/33MHz, DDR2 RAM controller, IPC (Internal Peripheral Controller with DMA and interrupt timer/counter included), Fast Ethernet MAC, FIFO UART, USB 2.0 host and IDE controller. This makes it the ideal solution for embedded systems and communication products such as thin clients, NAT routers, home gateways, access points and tablet PCs.
- x86 32bit Processor Core
- Floating point unit support
- Embedded I/D Separated L1 Cache
- Embedded L2 Cache
- DDRII Control Interface
- IDE Controller
- LPC (Low Pin Count) Bus Interface
- MAC Controller x 1PCI Control Interface
- ISA Bus Interface
- DMA Controller
- Interrupt Controller
- Counter/Timers
- MTBF Counter
- Real Time Clock (Internal Mode or External Mode)
- FIFO UART Port x 5 (5 sets COM Port)
- Parallel Port
- General Chip Selector
- General Programmable I/O
- USB 2.0 Host Support
- USB 1.1 Host Support
- PS/2 Keyboard and Mouse Interface Support
- Redundant System Support
- Speaker out
- Embedded 2MB Flash
- I²C bus x 2Servo Control interface support
- General Shift interface support
- JTAG Interface supported for S.W. debugging
- Input clock
- 14.318MHz
- 32.768KHz
- Output clock
- 24 MHz
- 25 MHz
- PCI clock
- ISA clock
- DDRII clock
- Operating Voltage Range
- Core voltage: 1.2 V ~ 1.4V
- I/O voltage: 1.8V ± 5%, 3.3 V ± 10 %
- Operating temperature: -40 ~ 85°C
- Package Type: 27x27mm, 581 ball BGA
DMP Electronics Inc., a member of the DM&P Group, was founded in 1989 and develops industrial control systems. Since the beginning DMP focused on the development of x86-based computer-on-a-chip products. The high level of integration, coupled with low power loss makes the single-chip x86 computers an ideal solution for industrial, control, medical and automation applications.
Eval Board Vortex86DX
The evaluation board is an SBC (Single Board Computer) that is perfectly matched to the SoC (System-on-a-Chip). This evaluation board is ideal for developers as it eliminates time-consuming troubleshooting and configuration of the SBC and SoC. The performance of the processor with the I/O interfaces can be tested very easily. As a reference design, it also provides an ideal template for your development. The core of the board contains the SoC and DDR2_RAM. The I/O interfaces LAN, USB, RS232, GPIO, PS/2, Printer, IDE WDT, ISA and PCI are also integrated.
