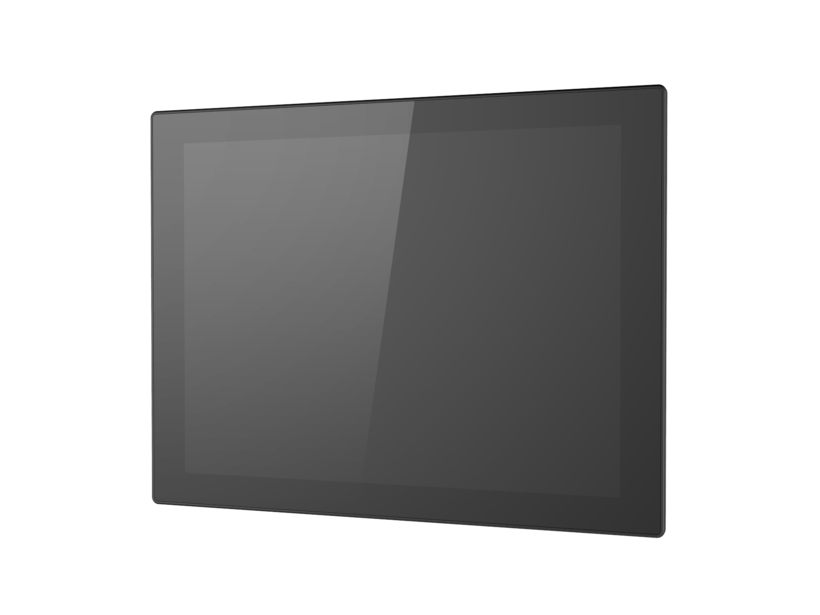

ARC-1538-B
15" 11th Gen. Intel Core Processor i7/i5/i3 Lüfterloser Rugged Touch Panel PC mit IET Erweiterung
- Onboard 11th Gen. Intel®Core™ i7/i5/i3 BGA Processor
- Full Flat Front Panel with Projected Capacitive Touch Supports Multi Touch
- One 260-pin SODIMM sockets supports up to 32GB DDR4 3200 SDRAM
- 4 x USB3.2, 2 x COM
- Dual Intel Gigabit LAN
- 2 x M.2 Slots (Key-B 2242/3042/3052, Key-E 2230)
- Support Wi-Fi / BT / 4G / 5G (by option)
- Wide Voltage +12V ~ +24V Input, ErP Power
- Available Expansion for Audio, USB, COM, HDMI, MPCIe, GPIO, CAN Bus
- IP65 Compliant Front Panel, IP41 Rear Box
- With Panel Mount kits included
- TPM 2.0 Function
- Fanless Operation from -10°C ~ 50°C (14°F ~ 122°F)
- Processor
- 11th Gen Intel® Core™ i7/i5/i3 BGA Processor
- Intel® Core™ i7- 1185G7E (15W, 12M Cache, up to 2.80 GHz), ST
- Intel® Core™ i5- 1145G7E (15W, 8M Cache, up to 2.60 GHz), ST
- Intel® Core™ i3- 1115G4E (15W, 6M Cache, up to 3.00 GHz), ST
- System Memory: 1 x 260-Pin DDR4 3200MHz SO-DIMM up to 32 GB
- I/O Chipset: EC ITE IT8528E
- Watchdog Timer: H/W Reset, 1sec. ~ 65535min. and 1sec. or 1min./step
- H/W Status Monitor: Monitoring CPU & System Temperature and Voltage
- TPM: Onboard NuvoTon NPCT754AABYX support TPM 2.0
- SBC: ARC-TGL
- Expansion
- 1 x M.2 Key-B 2242/3042/3052 with SIM card slot, Support SATA3 / PCIe & USB for LTE(4/5G) / NVMe(BOM option for PCIex 2)
- 1 x M.2 Key-E 2230, Support PCIe/USB/CNVi Wi-Fi/BT module
- 1 x 80-pin IET interface
- Storage: 1 x 2.5" Drive Bay (7mm HDD Restricted)
- Panel
- LCD Size: 15", 4:3
- Display Type: XGA
- Resolution: 1024 x 768
- Pixel pitch: 0.297mm(H) x 0.297mm(V)
- Luminance: 300 cd/m²
- Contrast ratio: 2000
- Viewing angle: 88 (U), 88 (D), 88 (L), 88 (R)
- Response time: 16 ms
- Backlight: LED
- Touch Type: Projective Capacitive Multi-Touch up to 10 points
- Touch Light Transmission: 89 %
- Touch Controller: USB touch (ILITEK ILI2511，COF)
- I/O
- USB Port: 4 x USB 3.0
- COM Port: 1 x RS-232/422/485, 1 x RS-232
- SATA: 1 x SATA III
- Display
- Graphic Chipset: Intel® Tiger Lake UP3 SoC integrated Graphics, Supports optional dual display
- HDMI: Max. resolution 4096x2160 @ 24Hz (Optional by IET module)
- Audio Codec: Realtek ALC888S(co-layout 897)
- Speaker Output: 2 x 2W
- Certifications: CE, FCC Class B
- Ethernet
- LAN Chipset: 1 x Intel® I225LM 2.5 Gigabit Ethernet, 1 x Intel® I219LM Gigabit Ethernet PHY
- Ethernet Interface: 10/100/1000 Base-Tx GbE compatible
- LAN Port: 2 x RJ-45
- Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
