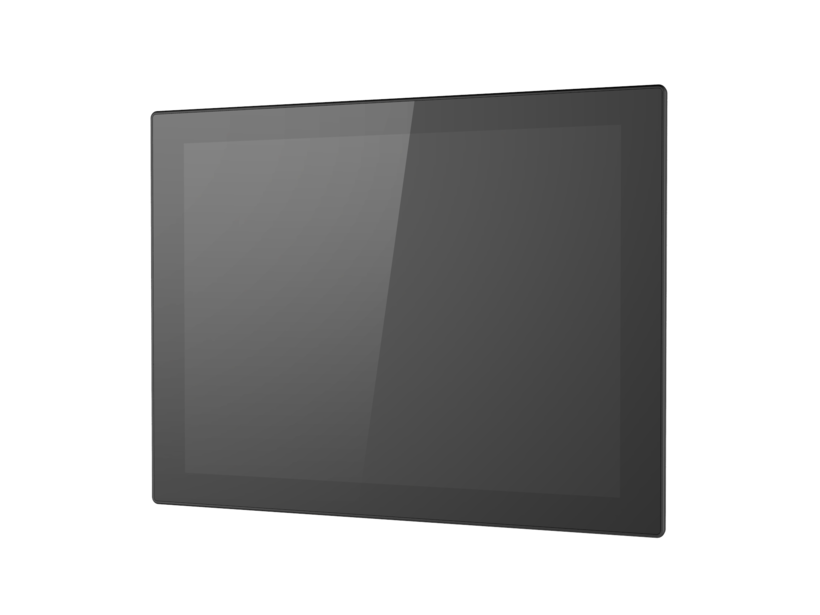

ARC-1235-B
12,1" Intel Atom SoC-Prozessor x6211E/x6413E/x6425E Lüfterloser, rugged Touch-Panel-PC mit IET-Erweiterung
- Onboard Intel® Atom™ Elkhart Lake x6211E/x6413E/x6425E Processor
- One 260-pin SODIMM sockets supports up to 32GB DDR4 3200 SDRAM
- 4 x USB3.2, 2 x COM
- Dual Intel Gigabit LAN
- 2 x M.2 Slots (Key-B 2242/3042/3052, Key-E 2230)
- Support Wi-Fi / BT / 4G / 5G (by option)
- Wide Voltage +12V ~ +24V Input, ErP Power
- Available Expansion for Audio, USB, COM, HDMI, GPIO
- IP65 Compliant Front Panel, IP41 Rear Box
- 10 Point PCAP Touch
- TPM 2.0 Function
- Fanless Operation Wide temp. from -10°C ~ 50°C (-14°F ~ 122°F)
- Processor:
- Onboard Intel® Elkhart Lake Processor
- Intel Atom® x6211E Processor (6W, 1.5M Cache, up to 3.00 GHz)
- Intel Atom® x6413E Processor (9W, 1.5M Cache, up to 3.00 GHz)
- Intel Atom® x6425E Processor (12W, 1.5M Cache, up to 3.00 GHz)
- System Memory: 1 x 260-pin DDR4 3200 MHz SO-DIMM socket, supports up to 32GB Max (In-BEND ECC supported)
- I/O Chipset: EC ITE IT5571
- Watchdog Timer: H/W Reset, 1sec. ~ 65535min. and 1sec. or 1min./step
- H/W Status Monitor: Monitoring CPU & System Temperature and Voltage
- TPM: Onboard NuvoTon NPCT754AABYX support TPM 2.0
- SBC: ARC-EHL
- Expansion
- 1 x M.2 Key-B 2242/3042/3052 with SIM card slot, support SATA III
- 1 x M.2 Key-E 2230, support PCIex1, USB2.0
- 1 x 80-pin IET interface
- Storage: 1 x 2.5" Drive Bay
- Panel
- LCD Size: 12.1", 4:3
- Display Type: XGA
- Resolution: 1024 x 768
- Pixel pitch: 0.240 mm (H) x 0.240 mm (V)
- Luminance: 600 cd/m²
- Contrast ratio: 1000
- Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
- Response time: 13 ms
- Backlight: LED
- Touch Type: 10 Point PCAP Touch
- Touch Light Transmission: 89 %
- Touch Controller: USB touch (EETI)
- I/O
- USB Port: 4 x USB 3.2
- COM Port: 1 x RS-232/422/485, 1 x RS-232
- SATA: 1 x SATA III
- Display
- Graphic Chipset: Intel® Elkhart Lake SoC integrated Graphics, Supports optional dual display
- HDMI: Max. resolution 4096x2160 @ 24Hz (Optional by IET module)
- Audio Codec: Realtek ALC888S (897 co-layout)
- Speaker Output: 2 x 2W
- Certifications: CE/ FCC class B
- Ethernet
- LAN Chipset: 2 x Intel® I225-IT 2.5 Gigabit Ethernet
- Ethernet Interface: 10/100/1000 Base-Tx GbE compatible
- LAN Port: 2 x RJ-45
- Power Requirement
- DC Input: +12V ~ +24V
- DC Input Connector: Lockable DC Jack
- Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
- Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter
- Operating Temperature: Wide temp.-10°C ~ 50°C (-14°F ~ 122°F)
- Storage Temperature: Wide temp.-20°C ~ 60°C (-4°F ~ 140°F)
Avalue Technology Inc. entwickelt und produziert industrielle Computerlösungen in Taiwan und international. Zum Portfolio gehören Computer-On-Modules, Single-Board-Computer, Industrial Motherboards, Embedded-, Industrial und Panel PCs als auch Systemlösungen. HY-LINE vertreibt die robusten Produkte zum Einsatz in den Bereichen Healthcare, Digital Signage, Transport und Gaming. Avalue Technology Inc. wurde im Jahr 2000 gegründet und hat seinen Hauptsitz in New Taipei City, Taiwan.
