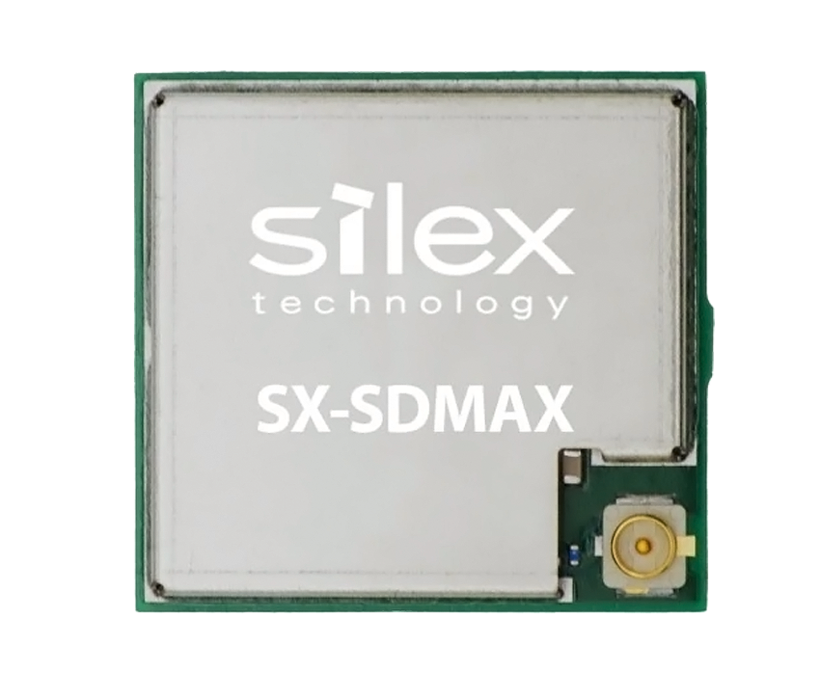

SX-SDMAX
Dual-Band Wi-Fi 6 plus Bluetooth® Combo SDIO Module
The SX-SDMAX is a 2.4 GHz/5 GHz dual-band Wi-Fi 6 plus Bluetooth v5.3 BR/EDR/LE SDIO 3.0 module with the NXP IW611 chipset supporting the latest 802.11ax standard. It reliably provides secure plug-and-play wireless connectivity for NXP i.MX series and other platforms for improved performance with low latency, high throughput and low power consumption for better communication in dense environments.
- 10-15 Year Lifecycle
- Host Interface
- WLAN: SDIO 3.0
- Bluetooth: UART
- Wi-Fi Standard: IEEE 802.11a/b/g/n/ac/ax (1x1)
- Bluetooth Specification: Bluetooth v5.3 (BR/EDT/LE Compliant)
- Antenna: MHF1 x1
- Operating Voltage
- Main Power: 3.3V + 1.8V
- IO Power: 1.8V or 3.3V
- Operating Conditions
- Temperature: -40 ~ 85 ℃
- Humidity: 95% RH or less (Without condensation)
- Storage Conditions
- Temperature: -40 ~ 85 ℃
- Humidity: 95% RH or less (Without condensation)
- Dimensionen:17.0x18.0x2.65mm
Silex Technology develops and manufactures wireless LAN modules for the 802.11 b/g/a/n standards. The difference to many other WLAN modules is the high quality in combination with reasonable prices and good support. Different interfaces and flexible integration of the software on the modules or the existing host system are further advantages of Silex.
