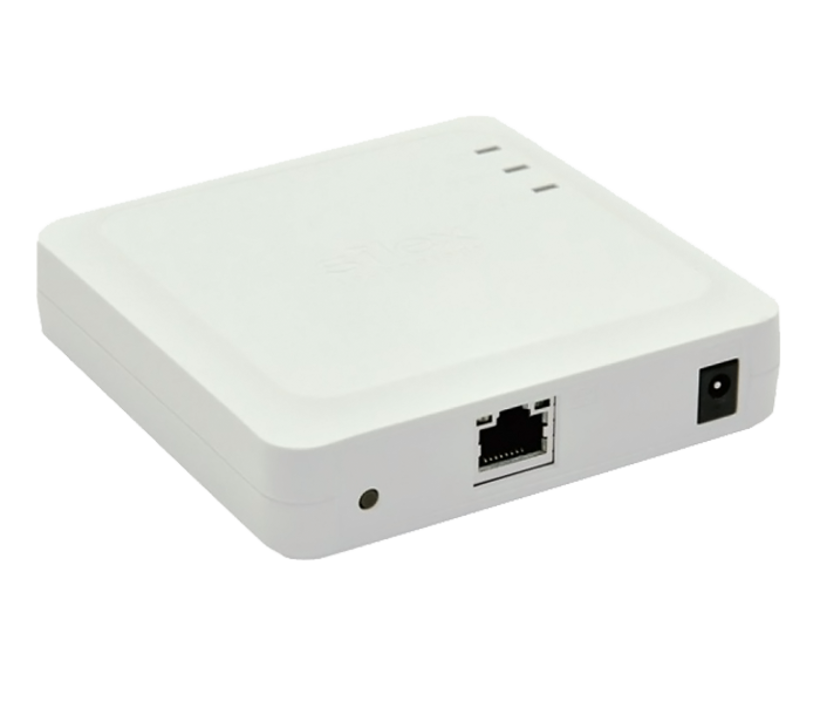

BR-400AN

ProductsIoT & M2M SystemsIndustrial Routers & Gateways+BR-400AN

Mesh network system with 802.11a/b/g/n supporting both Infrastructure and Peer to Peer mode BR-400AN uses Silex's enhanced IEEE802.11s implementation to not only making it easier to construct a mesh network, but also improve and enhance the network stability and performance. This 802.11a/b/g/ n mesh WLAN converter automatically establishes a wireless LAN between devices. With this bridge , users can set up wireless LAN environment in offices, health care sites and plants where IoT and ICT are actively involved in transfer of data. Also it supports access point mode, where it can act as an AP to extend your network infrastructure to support Mesh.

Do you have questions about our products?

Please let us know.

HY-LINE AG

+41 52 647 42 00 info@hy-line.ch

BR-400AN Wireless Security

BR-400AN provides enterprise-level security and device filter functions for business use.

IEEE 802.11X authentication
Access point SSID stealth support
MAC address filtering function
AES encryption

Features /Benefits

Interface: 10BASE-T, 100BASE-TX, 1000BAST-T(automatic recognition)
Wireless LAN: IEEE 802.11a/b/g/n
Security: WEP, WPA-PSK, WPA2-PSK,IEEE 802.1X, SSID stealth , MAC address filtering
Dimensions: 100mm × 100 mm × 25.5 mm
Weight: 120g
Maximum Power Consumption:7 W (DC 5 V 1.4 A)
Operating: 0°C to 40°C Humidity: 20% to 80% RH
Storage: -10°C to +50°C Humidity: 20% to 90% RH

Specification

Dual band IEEE 802.11a/b/g/n support
Modes: Mesh point mode & Mesh access point mode
Multi-hop support
Enterprise security
AMC Manager support
Mesh Monitor
Simple to setup and use (patented) wired LAN port supports 10/100/1000BASE-T

Kategorie wählen::

Wi-Fi Router / Gateways & Bridges

141-20155-100_br-400an_product_brochure.pdf

Silex Technology develops and manufactures wireless LAN modules for the 802.11 b/g/a/n standards. The difference to many other WLAN modules is the high quality in combination with reasonable prices and good support. Different interfaces and flexible integration of the software on the modules or the existing host system are further advantages of Silex.

Our products fit into the most diverse fields of application. If there is no suitable product for you, please ask us, we will also be able to offer you an ideal solution for your field of application.
