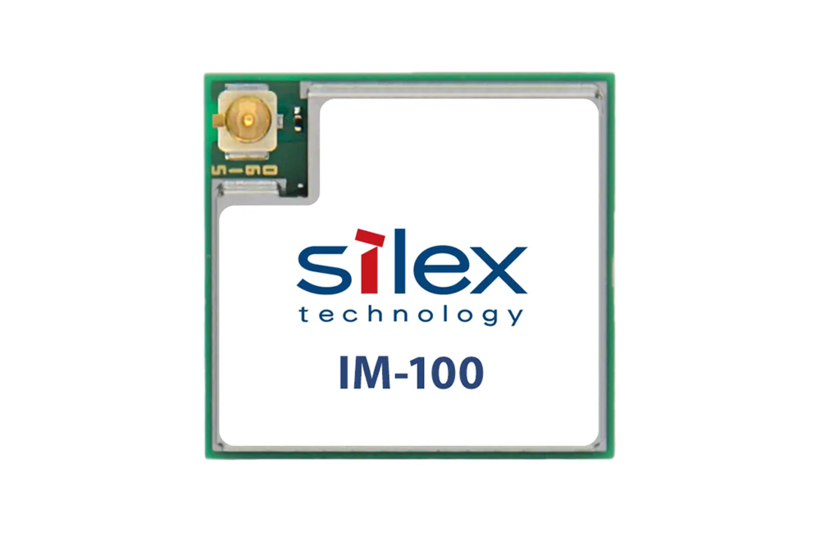

IM-100
Wi-Fi 6 plus Bluetooth Stand-alone System on Module
Based on NXP's RW610, IM-100 is a small, stand-alone, dual-band Wi-Fi 6 and Bluetooth Low Energy wireless module that not only provides premium wireless connectivity but also can accommodate data processing and other applications on the module itself, thus offloading your host processor.
The IM-100 module is ideal for a wide range of applications, including industrial automation, smart buildings and homes, smart cities, medical and healthcare devices, telematics, and EV charging.
- Product Name: IM-100(MHF), IM-100(PAD)
- Radio Chipset: RW610 (NXP)
- On Board CPU: ARM-M33 260MHz
- Memory: 1.2MB (Built-in RW610), Extra memory can be mounted on the customer's board.
- Radio Specifications:
- WLAN: 802.11a/b/g/n/ac/ax (1x1)
- BT: Bluetooth® LE v5.3
- Supported Interface: LAN(100Base), USB2.0, UARTx2 (Option: SPI, SDIO)
- Security:
- WPA/WPA2/WPA3-Enterprise
- 802.11x (EAP-TLS, EAP-TTLS, PEAP, EAP-FAST)
- Operating Voltage: 3.3V +/-5%
- Operating Temperature: -40 to +85 °C
- Dimensions: 17.0 x 18.0 x 2.65 mm (L x W x H)
- Modular Certifications: FCC / IC / CE / MIC
Silex Technology develops and manufactures wireless LAN modules for the 802.11 b/g/a/n standards. The difference to many other WLAN modules is the high quality in combination with reasonable prices and good support. Different interfaces and flexible integration of the software on the modules or the existing host system are further advantages of Silex.
