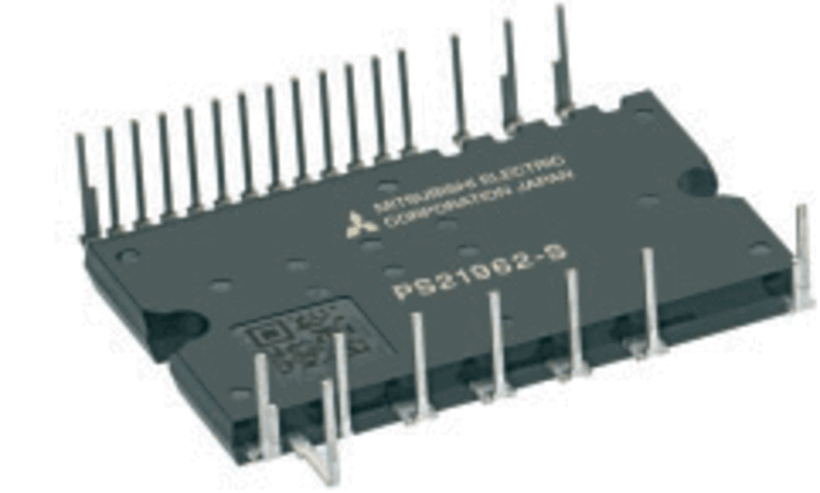

600V Super Mini DIPIPM Ver. 6
Dual-in-line Package Intelligent Power Modules
- 7th Generation IGBT with CSTBT(TM) chip technology
- 3-phase DC/AC conversion
- Junction Temp. T(j): -30°C - 150°C
- Protection functions:
Short Circuit (SC),
Under Voltage (UV),
Over Temperature (OT) - Analog output of LVIC temp. (optional)
- Fault signal output in case of a failure
- Built-in Bootstrap diode with current limiting resistor
- 3 - 15V input compatible with Ver. 4 and 5 PS219xx series (38mm x 24mm)
- Pin compatible with Ver. 4 and 5 PS219xx series (38mm x 24mm)
- N-side open Emitter
- Isolation voltage: AC 1500V(rms)
Mitsubishi Electric is the technology leader in the field of IGBT modules - now in their 7th generation - and Intelligent Power Modules (IPM). The compact design offers significant advantages, especially for harsh environmental conditions such as in drive technology.
