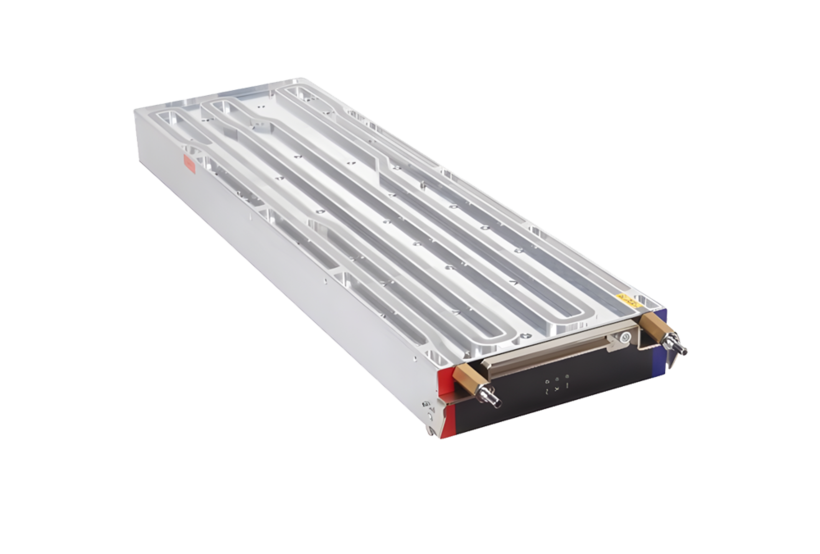

CC12500

AC/DC 3 Phase Water Cooled Power Supply

The CC12500H3C380TEZ-GM is a high efficiency, true 3 phase, 3 wire (Delta) AC input, 380Vdc HVDC output, liquid cooled rectifier power supply. The true three phase input eliminates any neutral connection, and ensures tight phase current balancing. The rectifier achieves very high efficiency, >96%, reducing the cooling demands and providing beneficial OpEx savings. The rectifier meets world-wide safety, environmental, and regulatory requirements. The physical package is designed to allow very flexible positioning into system cabinets, or racks. The rectifier can be mounted in both horizontal and vertical orientations, and its thin profile allows for minimal width when mounted vertically along cabinet’s sides, or maximum stacking density when mounted horizontally in equipment racks. The width allows two rectifiers to be mounted side by side in standard 19 inch racks.

Do you have questions about our products?
Please let us know.
HY-LINE Technology GmbH
+49 89 614 503 10sales@hy-line.de
  • Efficiency 96.0% peak typical
  • Compact form factor with 24W/in3 density
  • Nominal Dimensions 60.3 x 203.2 x 711.2 mm (2.4 x 8.0 x 28.0in)
  • AC Input 3-wire, 3Φ-400/480Vac, 12,500W Rated Output
  • Power factor correction (meets EN/IEC 61000-3-2 and EN 60555-2 requirements)
  • High Resistance Mid-Point Ground (HRMG) ±190VDC Output with Internal HRMG Fault detector circuit
  • RS-485 Communication Protocol
  • Output voltage programmable from 360-400VDC
  • Output overvoltage and overload protection
  • AC Input overvoltage and undervoltage protection
  • Over-temperature warning and protection
  • Redundant, parallel operation with droop load sharing
  • Redundant +12VDC @ 1.8A Aux power
  • Remote ON/OFF
  • Integrated liquid-cooled cold plate
  • Hot insertion/removal (hot plug)
  • Redundant DC output Interlock
  • Three front panel LED indicators
  • ANSI/UL* 62368-1 and CAN/CSA† C22.2 No. 62368-1 Recognized, DIN VDE‡ 0868-1/A11:2017 (EN62368-1:2014/A11:2017)
  • Meets FCC part 15 subpart B, EN55032 Class B standards
  • Meets EN61000 immunity and transient standards
  • Shock & vibration: Meets IPC 9592 Class II standards
  • Dripless Liquid Quick Connects Designed for Electronics Applications

OmniOn Power, formerly ABB Power Conversion, stands for highly reliable power solutions ("critical power").

The Embedded Power range offers high performance industrial power supplies, whether as classic power supplies or DC/DC converters for on-board solutions, isolating DC/DC and non-isolating POLs.
