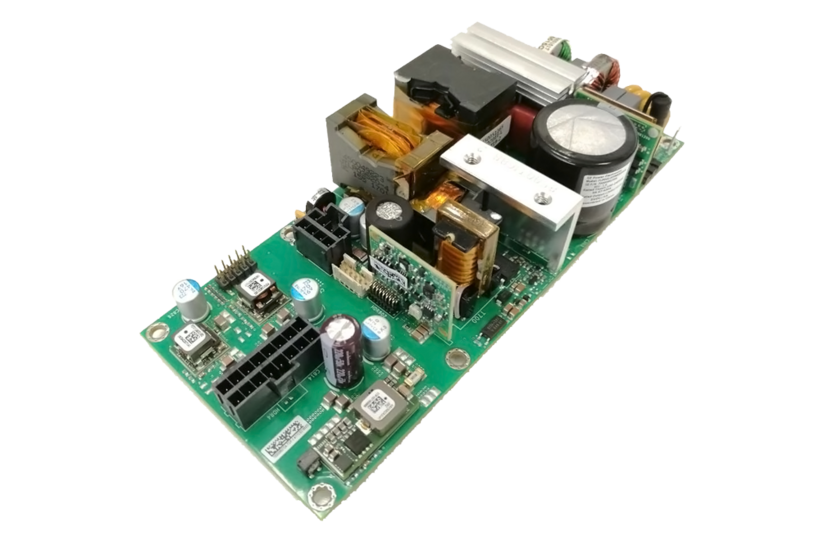

FLP0412FPx

Open Frame Power Supply

In a small 3 x 7 inch footprint, the 450W 2-4 output FLP0412x open frame power supply delivers greater than 90 percent typical power efficiency and full load output at 42˚C and 1m/s airflow. Protection features include output overcurrent (OCP), overvoltage (OVP), and overtemperature (OTP). There is power trading between the outputs. Whatever power is going to be taken from V2, V3, and V4, should be deducted from the gross power available from V1. This unit also offers PMBus control and monitoring of V3 and V4. Use of this feature is optional.

Do you have questions about our products?
Please let us know.
HY-LINE Technology GmbH
+49 89 614 503 10sales@hy-line.de
  • Input voltage range 90...265 V AC
  • Output voltages: 12 V / 37.5 A , 24 V (16...34V) / 2 A, optional 2x 1...5.5 V / 12 A
  • Additional standby voltage 5 V / 1 A
  • Total power max. 450 W with fan, 320 W encapsulated at 55°C ambient temperature
  • Only 76.2 x 178 x 36.8 mm, 420 g
  • High efficiency: > 91% at full load
  • Overvoltage, overcurrent and overtemperature protection
  • Temperature range max. -40...85°C
  • 11 ms bypass for brownout at full load
  • Complies with CISPR22 / EN55022 / EN55032 / FCC Class B
  • MTBF > 650,000 h (Telecordia SR-332 Issue 3 Method 1)

OmniOn Power, formerly ABB Power Conversion, stands for highly reliable power solutions ("critical power").

The Embedded Power range offers high performance industrial power supplies, whether as classic power supplies or DC/DC converters for on-board solutions, isolating DC/DC and non-isolating POLs.
