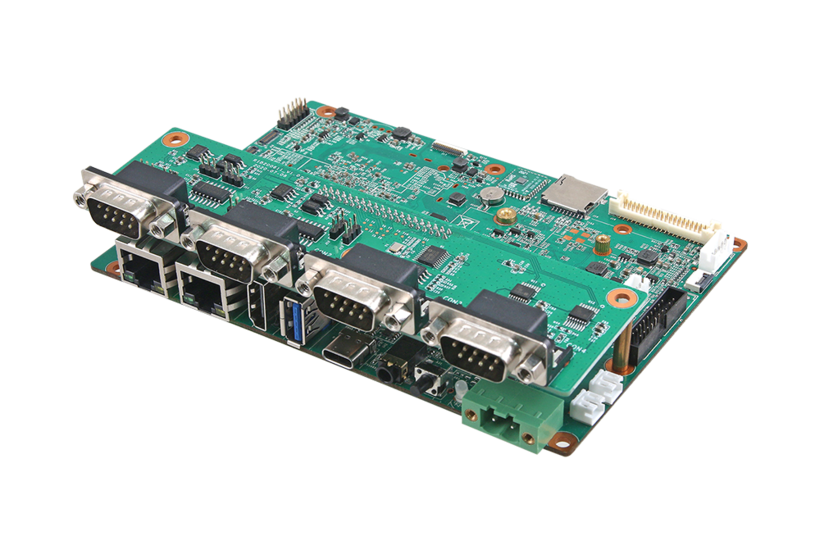

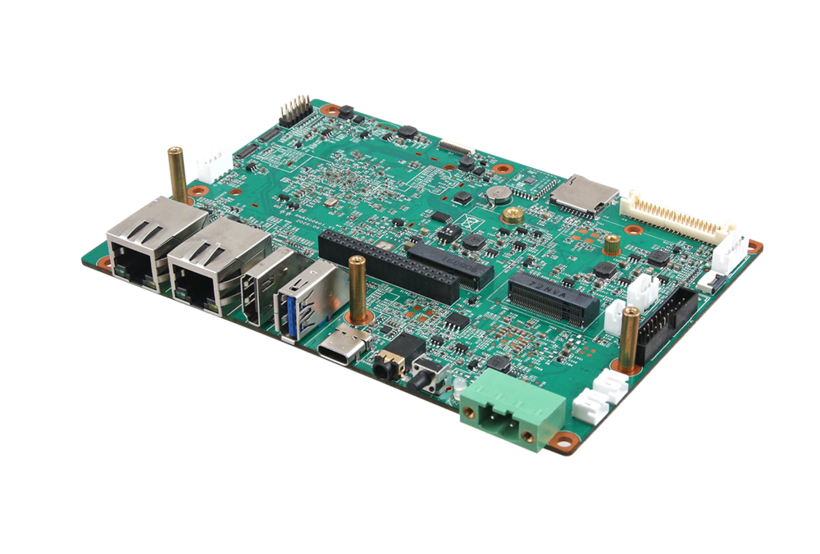

RSC-IMX8M
3.5" NXP IMX8M SBC with NXP® i.MX8M Quad ARM Cortex A53
- NXP® i.MX8M Quad ARM Cortex A53 Quad Core Up to 1.5GHz; Cortex-M4 core processor
- 8GB eMMC
- 2GB Onboard DDR4 Memory (expandable up to 4GB Max)
- Display (HDMI / LVDS / MIPI DSI)
- Dual GLAN
- JTAG
- USB 3.0 Type A, USB 3.0 Pin Header
- M.2 Key E Socket (For WIFI/BT), M.2 Key B Socket + SIM Socket (For LTE)
- DC IN 12~24V
- Linux Yocto 3.0 (First) & Android 10 (coming soon)
- Processor: NXP® i.MX8M Quad ARM Cortex A53 Quad Core Up to 1.5GHz; Cortex-M4 core processor
- System Memory: 2GB RAM
- Storage: eMMC 8GB
- USB: OTG USB 3.0 Type C (Data only), USB 3.0 Type A, USB 3.0 Pin Header
- COM Port:

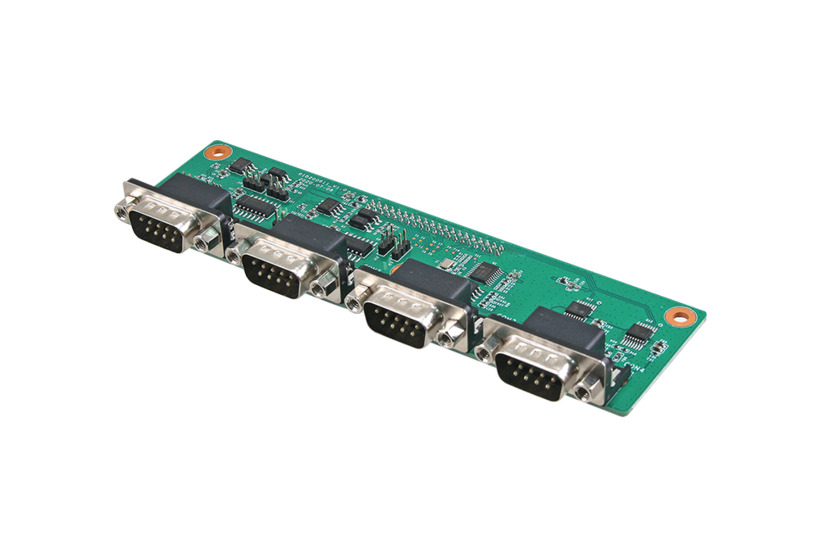

- Extend Board-1 (4 x RS232/485)
- Extend Board-2 (2 x RS232/485 , 1 x CAN Bus , 1 x GPIO)
- External I/O Connector
- 1 x USB 3.0 Type A(Vertical type)
- 2x RJ45 connector with indicate LED
- Industry Version：2pcs(Default) , Consumer Version：1pcs
- 1 x HDMI connector (Vertical type)
- 1 x USB 3.0 Type C
- 1 x Micro SD socket
- 1 x Hand Phone
- 1 x Reset
- 1 x Power LED (Green)
- Internal I/O Connector
- 1 x Front Panel connector
- 2 x MIPI CSI connector
- 1 x DC connector with lock Header
- 1 x TAG connector
- 1 x MIPI DSI connector
- 1 x LVDS connector
- 1 x Back Light connector
- 1 x I2C connector
- 1 x USB connector
- 1 x 2230 M.2 for WiFi/BT (PCIe& USB Channel)
- 1 x 3042 M.2 for 3G/4G Module (USB Only)
- 1 x SIM Socket connector
- 1 x 2x20P Header connector
- 1 x 1x2P Header (R) connector
- 1 x 1x2P Header (L) connector
- 1 x Line-Out Header with 12V out
- 1 x Mic-In Header connector
- Display: Multiple Display (HDMI / LVDS / MIPI DSI)
- Ethernet
- LAN 1: Intel I210
- LAN 2: AR8033
- 2 x RJ45 Connectors for Dual Gigabit LAN
- Industry Version：2pcs(Default)
- Consumer Version：1pcs
- Power Requirement: DC 12 ~ 24V Power Input
- Power Type: Terminal Block 2P power input connector
- Operating Temperature
- Industry Operating temperature：-40~85 Degree (Default)
- Consumer Operating temperature：0~85 Degree
- Dimension (L x W): (146.05mm x 101.6mm)
- Weight: 0.16kg
- Certifications: CE, FCC Class B
- OS: Linux Yocto Version 3.0, Android Version 10
