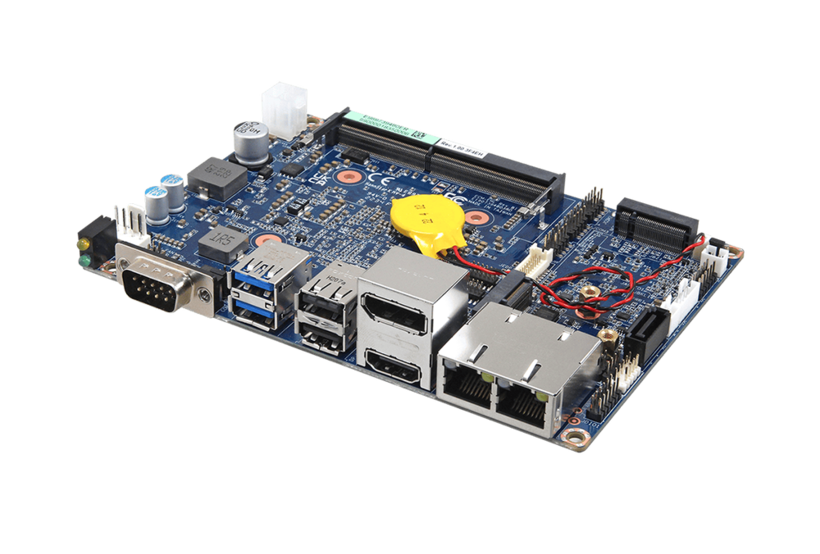

ECM-EHL
Intel® Elkhart Lake 3.5” Micro Module
- Bottom Layer Soldered Processor
- Single DRAM Socket, Max, Up to 32GB DDR4 3200MTs (non-ECC Supported)
- Triple Display, DP 1.4a , HDMI 2.0b, eDP 1.3
- Dual Expansion Slot, M.2 Key-B, M.2 Key-E
- Dual Intel® Gigabit Ethernet, 2.5GbE, 1GbE
- Wide Temperature, -40°C ~ 85°C
- Wide DC-Input, +9~36Vdc
- Processor: Onboard Intel® Pentium®/Celeron®/Atom™ SoC BGA Processor (Elkhart Lake Platform 4.5~12W)- (with CPU Bottom Mounted)
- System Chipset: Elkhart lake SoC integrated
- System Memory: Single 260-pin DDR4 SODIMM Socket, Supports Up to 32GB DDR4 3200MTs SDRAM (Factory ECC Supported)
- BIOS: AMI BIOS, 256Mbit SPI Flash ROM
- TPM: TPM 2.0 (NuvoTon_NPCT750AAAYX/ Infineon_SLB9670VQ2.0 co-lay) Default is NuvoTon
- Expansion
- 1 x M.2 (Key-B, 2242/3042, PCIex2, or ( PCIex1+USB3.1 GEN 2), or (SATAIII + USB 3.1 GEN2), USB2.0, SIM Slot for SSD/LTE/IO Cards) *Default is PCIex1/SATAIII+USB3.1 GEN2
- 1 x M.2 (Key-E, 2230, PCIex1, USB2.0)
- Storage: 1 x M.2 (Key-B, 2242), 1 x SATA III
- USB: 2 x USB 3.1 (Gen2 10Gbps), 4 x USB 2.0
- SATA: 1 x SATA III
- COM Port: 1 x RS-422/485, 3 x RS232
- Display
- Chipset: Intel® Elkhart Lake SoC Processor integrated Gen11 LP graphics
- HDMI 2.0b Max resolution 4096x2160@60Hz
- DP 1.4a Max resolution 4096x2160@60Hz
- eDP1.3 Max resolution 4096x2160@60Hz
- Triple Display
- Audio
- Chipset 92HD73C Tempo
- Audio Interface Mic-In, Line-In, Line-Out in pin header
- Ethernet
- Intel® I225LM, I211 for standard temperature
- Intel® I225IT, I210 for wide temperature
- 1 x 10/100/1000/2.5G Base-Tx GbE compatible
- 1 x 10/100/1000 Base-Tx GbE compatible
- LAN Port: 2 x RJ-45
- Power Requirement: Typical 12/24Vdc (+9~ 36Vdc)
- ACPI 5.0 Compliant
- Power Type: AT/ATX (Default Setting: AT)
- Temperature
- Standard Operating Temperature: 0°C ~ 60°C with 0.2m/s air flow
- Wide Operating Temperature: -40°C ~ 85°C with 0.5m/s air flow
- Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
- Dimension (L x W): 5.7" x 4" (146mm x 101mm)
- Weight 0.44lbs (0.2kg)
- Certifications: CE, FCC Class B
- OS: Win 10, Linux
