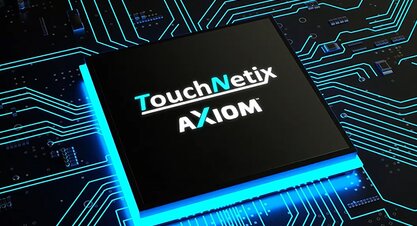

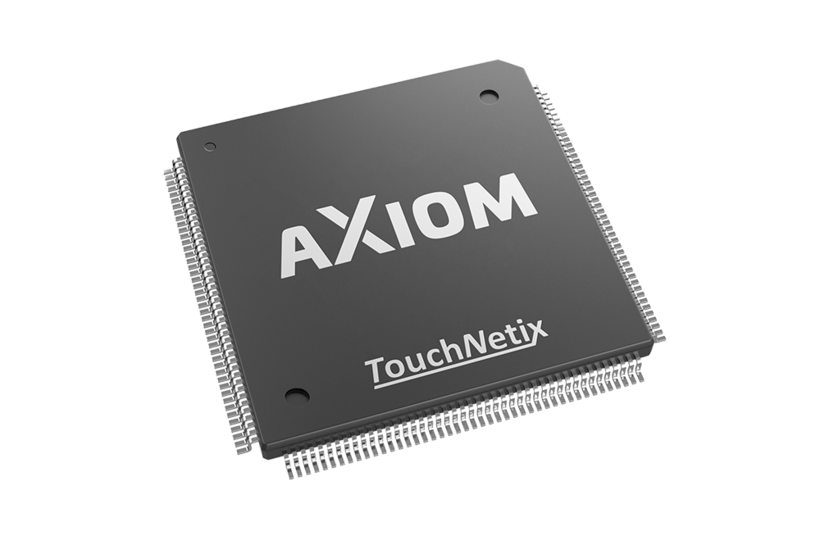

aXiom Chip Family
Powerful PCAP, Haptic, Force & Hovering Controller
The TouchNetix aXiom family, with its unique sinusoidal Tx drive, delivers up to 80dB of SNR, >100 times the SNR you’d expect from a traditional touch controller. The technology is coupled with a host of tools that really simplify the setup and tuning processes as well. aXiom parts are all register configurable, just like an MCU. The TouchHub software application has a built-in feature called auto-tune that will help you completely setup and configure your custom touch sensor in minutes.
- High SNR: >80dB
- Supports up to 198 touch sensing channels
- Automotive AEC-Q100 Grade 2 qualified
- Operating temperature from -40°C to +105°C
- Glove support without mode switching
- Water suppression and wet finger tracking
- Supports 3D gesture control
- Supports pressure detection
Founded in 2010, TouchNetix manufactures capacitive touch controllers and capacitive touchscreens. In October 2018, TouchNetix announced the launch of its aXiom™ touchscreen IC, which the company designed and developed specifically to meet the needs of industrial and automotive applications where consumer electronics-based products often lack the performance and robustness required.
TouchNetix designs touchscreen, force sensor and touchless user interface products using its proprietary aXiom™ IC and is the only company with a fully vertically integrated capability to deliver at the module and component level for demanding product applications.
