SX-PCEAC2
WiFi5 & Bluetooth, M.2 Interface
The SX-PCEAC2 is a dual-band 802.11 a / b / g / n / ac module with Bluetooth support designed for devices that require wireless connectivity in a small form factor combined with high data throughput of up to 867 Mbps. SX-PCEAC2 is based on the QCA6174-5 chipset with 802.11ac performance and is ideal for embedded applications such as medical devices, security systems, industrial PCs, PoS, automation, handheld devices, thin client devices and more.
- Dual-Band 802.11ac Wave2 with MU-MIMO

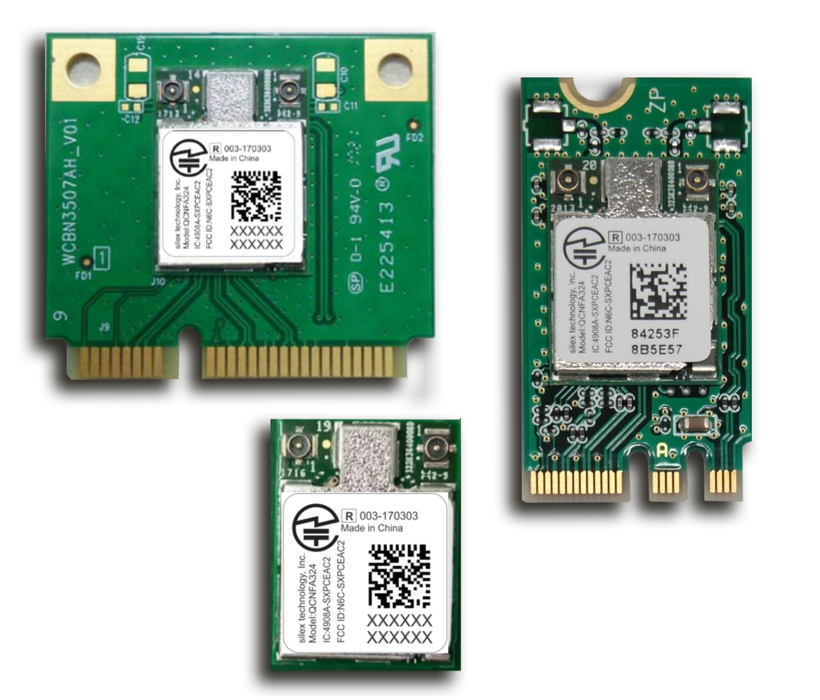

- Multiple Form Factors for Diverse Needs
- Ultra High Speed Data Rates up to 867 Mbps
- Enterprise security including 802.1x authentication protocol (EAP) types
- Support from Design to Manufacture
- Modular certifications and approvals available for FCC (USA), IC (Canada), ETSI (Europe), MIC (Japan)
- Chipset: QCA6174-5
- Host Interface: WLAN: PCIe BT: USB
- Radio Specifications: 802.11a/b/g/n/ac (2x2)
- Bluetooth Specifications: BT4.1 + HS “Smart Ready” BLE Compatible with BT1.x, 2.x, & EDR
- Current Consumption: PCIe for Wi-Fi, USB for Bluetooth RF Interface: Tx: 610mA ; Rx: 285mA; Idle: 10mA ; Radio Off: 3mA
- Operating Temperature: 0°C to +70 °C
- Power Supply Voltage: 3.3V
- Driver Options: Linux, ath10k, Windows
Silex Technology develops and manufactures wireless LAN modules for the 802.11 b/g/a/n standards. The difference to many other WLAN modules is the high quality in combination with reasonable prices and good support. Different interfaces and flexible integration of the software on the modules or the existing host system are further advantages of Silex.
