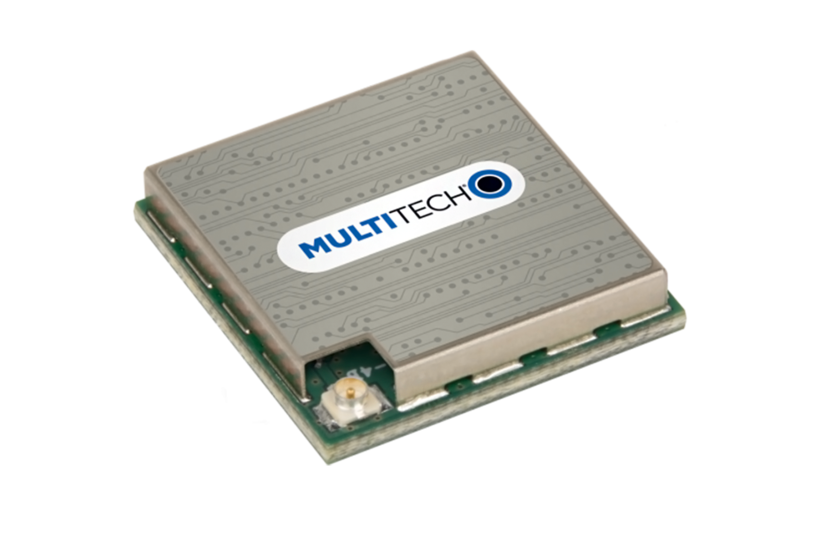

xDot Essential
Low Power LoRaWAN Module with Trace Antenna
The xDot® is a low-power, LoRaWAN® 1.0.4 Certified module designed to enable long-range, low-bandwidth communication for the Internet of Things (IoT) devices. With its ultra-low power consumption, the xDot is perfect for use in a wide range of IoT applications, including smart cities, agriculture, environmental monitoring, and industrial automation.
Featuring the latest in LoRaWAN technology, the xDot is capable of reaching more than 22 miles/35 km line-of-sight, making it ideal for remote and hard-to-reach locations, and provides excellent building penetration. Its low power consumption extends sensor and device battery life up to 10 years, making it the most reliable and cost-effective choice for long-term deployments. The xDot easily integrates into existing systems via serial UART AT Commands or you can build your own custom application using MultiTech ARM® Mbed OS libraries. The xDot safeguards IoT devices against the possibility of cyberattacks by following the AES-128 standard via symmetric cryptography and secret keys.
Both the xDot Essential and Advanced models share identical pins, enabling a straightforward and flexible substitution without the need for costly hardware upgrades or complex software development.
- LoRaWAN: LoRaWAN 1.0.4 Activation OTAA/ABP Class A, B, C, LoRa Point-to-Point
- LoRa Radio: SX1262 sub-GHz RF Transceiver
- LoRa Radio Frequency Plan: -NA1 = US915, -WW = US915, AS923-1/2/3/4, AU915, EU868, IN865, KR920, RU864
- Channel Configurability: Up to 16-channels (regionally dependent)
- Listen-Before-Talk (LBT) Enabled: Yes
- Host Interface: 1x Low Power UART
- Processor: ARM® Cortex-M4
- Clock Speed: 100 MHz internal clock speed
- Operating System: ARM Mbed OS
- Application: AT Command
- System Memory: 160KB SRAM
- Flash Memory: 384 KB
- FOTA Memory: Passthrough Mode Using AT Commands (Requires External Flash)
- Bootloader: UART
- Input/Output: UART, Wake, Reset, Status PINs
- Security: AES 128 LoRaWAN Compliance Standard
- Supply Voltage: 2.4 to 3.57V
- Maximum Transmitter Power Output (TPO): 21 dBm / Limited by LoRaWAN Regional Specification
- Maximum Receive Sensitivity: -148 dBm
- Deep Sleep Current: Deep Sleep = 1.0 uA
- Maximum Effective Isotropic Radiated Power (EiRP): 36 dBm @ 915 Mhz / 16 dBm @ 868 MHz
- Antenna Options: Trace Antenna
- Operating Temperature: -40° C to +85° C
- Storage Temperature: -40° C to +85° C
- ESD: ANSI/ESD S20.20-1999
