DPFX-1F14-TR

DisplayPort1.4 Optical Extender

Opticis DPFX-1F14-TR is a DisplayPort1.4 extender with one (1) fiber. It has a range of up to 200m and transmits up to 8K DSC (7680x4320) at 60Hz.

DPFX-1F14-TR transmit uncompressed and transparent data signal even when used with up to 3m copper cable as an intermediary. This enables installation of the product in the limited spaced area. 2m copper cable is provided in the shipping group.

Furthermore, to meet all the needs of the customers, DPFX-1F14-TR is fully interoperable with using DPFX-700-TR and DPFX-300-TR. Depending on the circumstances, customer can choose to use direct connection type module on one side, and additional extension type module on the other side.

DPFX-1F14-TR gives slim, light, and easy installation with perfect electrical isolation, but without electrical hazard and interference. It is operated external DC power adapter.

Do you have questions about our products?
Please let us know.
HY-LINE Technology GmbH
+49 89 614 503 10sales@hy-line.de
  • Supports DisplayPort 1.4 standards
  • Extends up to
    • 8K DSC(7680x4320) at 60Hz
    • 4K(3840x2160) at 144Hz
  • Transmits DisplayPort 1.4 data up to 200m (656feet) over one (1) LC multi-mode fiber (OM3)
  • Extra additional extension available up to 3m on each side (TX/RX)
  • Offers total data rate 32.4 Gbps (8.1 Gbps per lane)
  • Supports Multi-Stream Transport
  • Plug & Play
  • Data security with negligible EMI emission

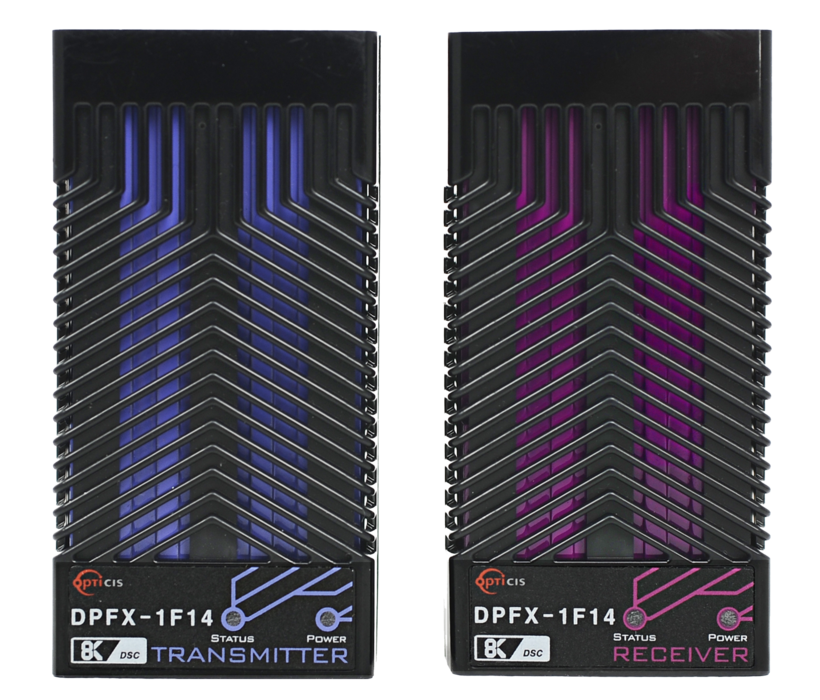

  • Label color distinction: TX (purple heart) & RX (red violet)
  • Certifies FCC and CE standards for EMI/RFI emission
Kategorie wählen::
DisplayPort 1.4

Optics Co. Ltd. is a leading provider of fiber-based extenders from South Korea. Opticis develops and produces point-to-point connections for DVI, HDMI, DisplayPort, SDI and USB since 1999. In addition, Opticis provides signal management solutions such as matrix routers. Opticis products are ideal for applications in the medical sector, digital signage, education and broadcasting.
