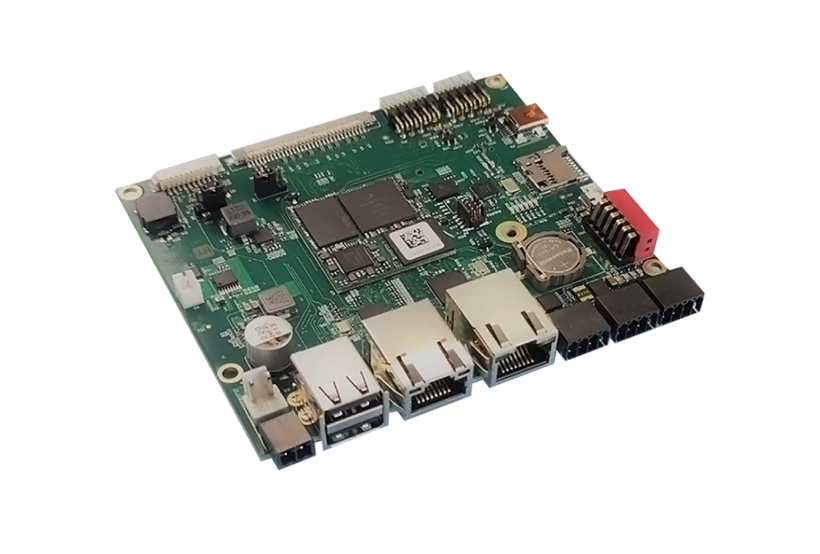

HY-LINE OSM RISC Mainboard
with iMX8M MINI SBC
- The perfect solution for the individual application: standard, semi-customized or fully customized
- Selection of processors matched to the target system
- Mainboard development with the appropriate interfaces and interfaces
- Operating system tailored to the system with customized BSP
- CPU:
- 4x Arm® Cortex®-A53 @1,6 GHz,
- 1x Arm® Cortex®-M4 @400 MHz,
- 2D GPU and 3D GPU
- Memory: LPDDR4 3200 MHz, 4GB
- Storage: eMMC 32GB, 1x micro-SD slot up to 128GB
- Graphic Port: dual channel LVDS up to 1920 x 1200 @60fps
- Interfaces:
- 2x USB 2.0 external | 4x USB 2.0 internal
- Eth. 1x 1 Gibt/s | 1x 10/100 Mbit/s
- 1x RS-232 | 1x RS485 | 1x CAN 2.0
- USB-OTG
- OS: Embedded Yocto Linux
- Cooling: Fanless passive
- Operation Temp.: 0°C...+70°C
- Relative Humidity: 10% - 90%, non condensing
- Certifications: CE, Emission EN55032 class B
