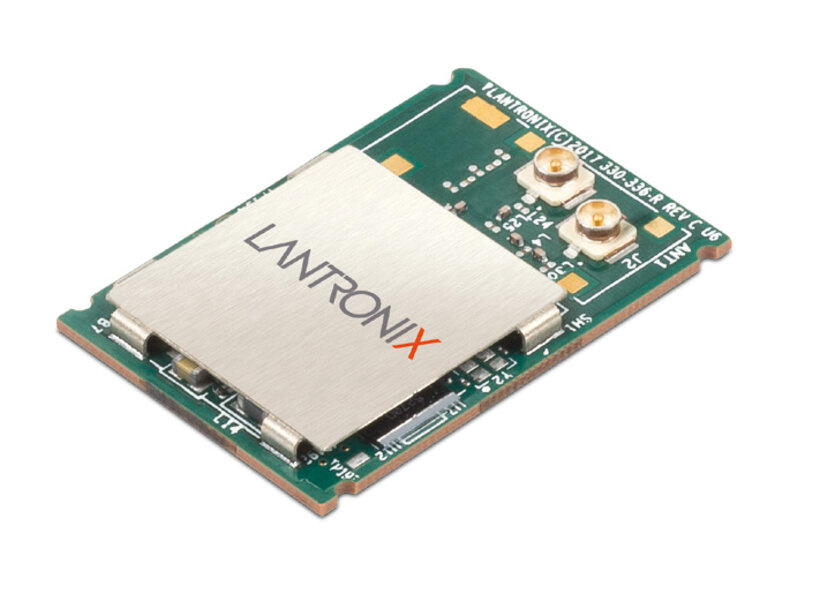

xPico 270
802.11 ac Wi-Fi + Bluetooth Embedded IoT Gateway
Das xPico 270 Gateway bietet Dual-Band 802.11ac Wi-Fi-Konnektivitätsmanagement und Unternehmenssicherheit für optimale Geräteleistung und Kommunikation in anspruchsvollen industriellen Umgebungen. Das kompakte xPico 270 Embedded Gateway vereinfacht neben leistungsstarkem Wi-Fi auch den Einsatz von robuster Ethernet-, Bluetooth und Bluetooth Low Energy (BLE)-Konnektivität ohne Schreiben komplexer Treiber. Sein branchenführendes kompaktes SMT-Format passt in jedes Design und kann in extremen Umgebungen eingesetzt werden.
Wireless LAN
- IEEE 802.11 a/b/g up to 54 Mbps; 802.11 n (1×1) up to 150 Mbps;
- 802.11ac up to 433 Mbps
- 20, 40 and 80 MHz channel width with optional SGI
- Dual Band 2.4 GHz and 5 GHz,
- Supports IEEE 802.11 d/h/i
Ethernet
- IEEE 802.3 MAC, 10BaseT and 100BaseT (RMII)
Bluetooth
- Compliant to Bluetooth Core Specification version 4.2 (BR/EDR/BLE)
- BLE Central and Peripheral Roles
- Support for Generic Access Profile (GAP), Generic Attribute Profile (GATT), Device ID Profile, Serial Port Profile (SPP)
Security & Authentication
- InfiniShield® Security Software
- AES/CCMP and TKIP encryption, WPA/WPA2 Personal
- WPA2 Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST)
- SSLv3/TLS 1.2 with PKI and X.509 Certificates (up to 4096-bit Keys)
- AES Algorithm, 256-bit, 192-bit, 128-bit
Protocol Support
- DHCP Client, Server (Soft AP), HTTP Server/Client
- IPv4, TCP/IP, UDP/IP, ARP, ICMP, Auto-IP, DNS
Wireless Features
- Concurrent Soft AP + STA (Client), Client, Soft AP
- Up to 5 simultaneous client connections to Soft AP interface
- Connect to multiple WLAN networks, WLAN QuickConnect
- Ethernet to Wi-Fi Client Bridge (Single Host Mode), Auto-MAC ID
Operating Conditions
- Operating Temp: -40°C to +85°C; Storage Temp: -40°C to + 85°C
- Vibration (Operational): 40G; Non-operational Shock: 65G
Host Interfaces
- Serial: UART Port TTL
- Data Rates: 9600 bps to 4 Mbps (software selectable)
- Control signals: DTR/DCD; Flow Control: RTS/CTS; XON/XOFF
- USB (Host)
- 12 Programmable I/O Pins
- System Pins: RESET, DEFAULT, WAKE
Dimensions
- 17mm x 25mm x 2mm (LGA); 22mm x 35.5mm x 2.73 mm (Edge Card)
Lantronix, Inc. is a provider of intelligent networking and communications solutions for M2M applications. Lantronix OEM modules and solutions for enterprises enable secure management, access, monitoring and control of machines, devices and sensors. Easy to integrate, Lantronix solutions enable enterprises to leverage the convergence of mobility with M2M systems and participate in the Internet of Things. To do this, Lantronix provides reliable embedded Ethernet and wireless networking solutions that enable developers to seamlessly connect any product to the network - wired or wireless - in a simple, cost-effective and reliable way.
In addition, Lantronix manufactures and distributes state-of-the-art GNSS receivers, modems, routers, gateways and vehicle telematics devices ideally suited for a wide range of M2M and IoT applications in industrial automation and SCADA, energy and instrumentation, as well as fleet management, vehicle or asset tracking, sharing models, driver identification, remote monitoring and asset management.
