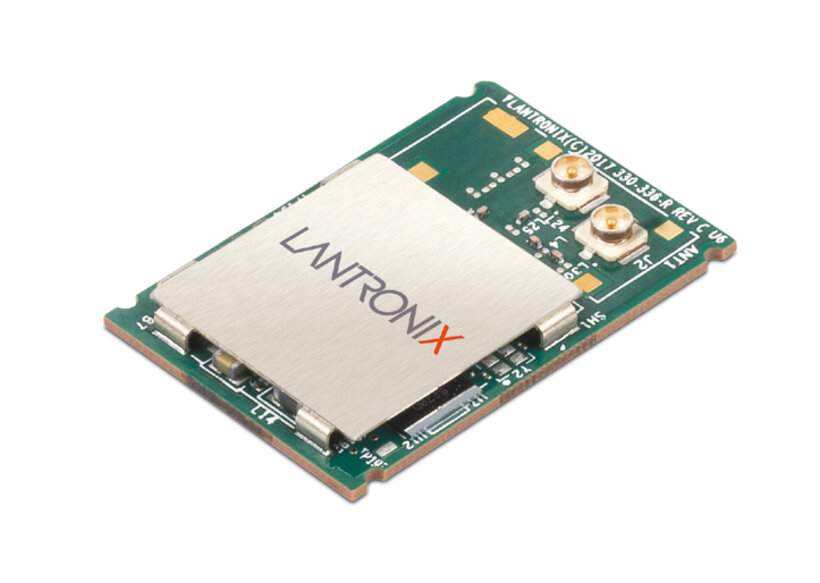

xPico 250
Embedded Wi-Fi + Bluetooth IoT Gateway
Dual-Band Wi-Fi, Enterprise Wi-Fi-Security und robustes drahtloses Konnektivitätsmanagement sorgen für höhere Leistung und skalierbare Bereitstellung in anspruchsvollen Industrie- und Unternehmensbereichen. Das Embedded IoT-Gateway xPico 250 macht es einfach, eine robuste Ethernet-, Wi-Fi- und Bluetooth-Verbindung bereitzustellen, ohne komplexe Treiber schreiben zu müssen. Das branchenführende kompakte SMT-Format ermöglicht es, den xPico 250 in jedes Design zu integrieren und unter extremen Bedingungen zu betreiben.
Wireless
- IEEE 802.11 a/b/g up to 54 Mbps; 802.11 n (1×1) up to 150 Mbps
- 20 and 40 MHz channel width with optional SGI
- Dual Band 2.4 GHz and 5 GHz, Channels 1-13, UNII-1, 2a, 2e and 3
- Supports IEEE 802.11 d/h/i
- Bluetooth/WLAN Coexistence
Ethernet
- IEEE 802.3 MAC, 10BaseT and 100BaseT (RMII)
Bluetooth
- Compliant to Bluetooth Core Specification version 4.2 (BR/EDR/BLE)
- BLE Central and Peripheral Roles
- Support for Generic Access Profile (GAP), Generic Attribute Profile (GATT), Device ID Profile
Security & Authentication
- TruPort® Security Software
- AES/CCMP and TKIP encryption, WPA/WPA2 Personal
- WPA2 Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST)
- SSLv3/TLS 1.2 with PKI and X.509 Certificates (up to 4096-bit Keys)
- AES Algorithm, 256-bit, 192-bit, 128-bit
Protocol Support
- DHCP Client, Server (Soft AP), HTTP Server/Client
- IPv4, TCP/IP, UDP/IP, ARP, ICMP, Auto-IP, DNS
Wireless Features
- Concurrent Soft AP + STA (Client), Client, Soft AP
- Up to 6 simultaneous client connections to Soft AP interface
- Connect to multiple WLAN networks, WLAN QuickConnect
- Ethernet to Wi-Fi Client Bridge (Single Host Mode), Auto-MAC ID
Operating Conditions
- Operating Temp: -40°C to +85°C; Storage Temp: -40°C to +100°C
- Vibration (Operational): 40G; Non-operational Shock: 65G
Host Interfaces
- Serial: UART Port TTL
- Data Rates: 9600 bps to 4 Mbps (software selectable)
- Control signals: DTR/DCD; Flow Control: RTS/CTS; XON/XOFF
- USB (Host), 10 Programmable I/O Pins
- System Pins: RESET, DEFAULT, WAKE
Dimensions
- 17mm x 25mm x 2mm (LGA); 22mm x 35.5mm x 2.73 mm (Edge Card)
Lantronix, Inc. is a provider of intelligent networking and communications solutions for M2M applications. Lantronix OEM modules and solutions for enterprises enable secure management, access, monitoring and control of machines, devices and sensors. Easy to integrate, Lantronix solutions enable enterprises to leverage the convergence of mobility with M2M systems and participate in the Internet of Things. To do this, Lantronix provides reliable embedded Ethernet and wireless networking solutions that enable developers to seamlessly connect any product to the network - wired or wireless - in a simple, cost-effective and reliable way.
In addition, Lantronix manufactures and distributes state-of-the-art GNSS receivers, modems, routers, gateways and vehicle telematics devices ideally suited for a wide range of M2M and IoT applications in industrial automation and SCADA, energy and instrumentation, as well as fleet management, vehicle or asset tracking, sharing models, driver identification, remote monitoring and asset management.
