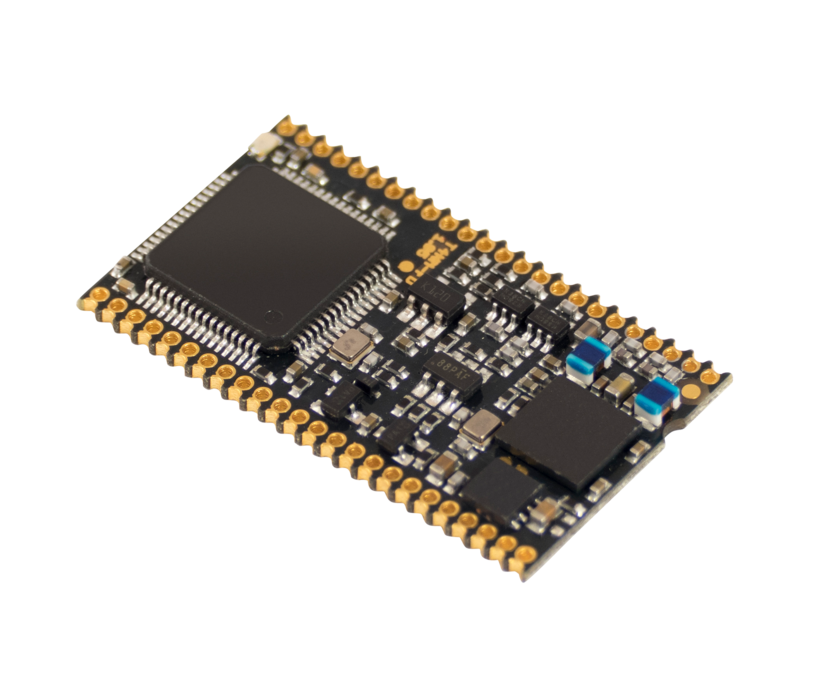

TWN4 MultiTech Nano
RFID Modul for PCB Integration
The TWN4 MultiTechNano is designed for integration into machines and other equipment. It can be used with an external PCB antenna. The hardware supports a wide range of different transponders for very individual requirements
- Powerful SDK for writing apps which are executed directly on the reader
- Infield updateable
- Onboard 18kB flash storage, e.g. for storing user accessible non-volatile data
- Edge plated pads for surface mounting (C0) allows easy and reliable PCB mounting & connector option (THT) (C1)
- Compliance to EMV contactless protocol specification V2.32)
- Direct chip-commands support
- Supports multiple SAMs (Secure Access Modules)
- CCID and PC/SC 2.01
- Interfaces:USB, 2 x Serial (logic level), I²C, SPI2), Clock/Data3), Wiegand3), 1-Wire2), CAN2)
- 8 GPIOs
- 3D Model (STEP) on request
Increasing efficiency, enhancing flexibility and safeguarding competitiveness - these are the key benefits of integrating RFID (Radio Frequency IDentification) technology. ELATEC's innovative and intelligent solution architectures open up additional potential for companies in their application areas, e.g. through the Wireless Internet of Things (IoT).
The main areas of expertise are development, sales and support for short-range contactless read/write modules (RFID, NFC, Bluetooth) and contact-based read/write modules (smartcard). The most successful product is the universal TWN4 MultiTech reader, which is compatible with more than 60 internationally popular RFID technologies. Founded in 1988, the company employs around 90 people at 14 locations worldwide, with headquarters near Munich.
Drivers and software for Elatec products can be found here.
