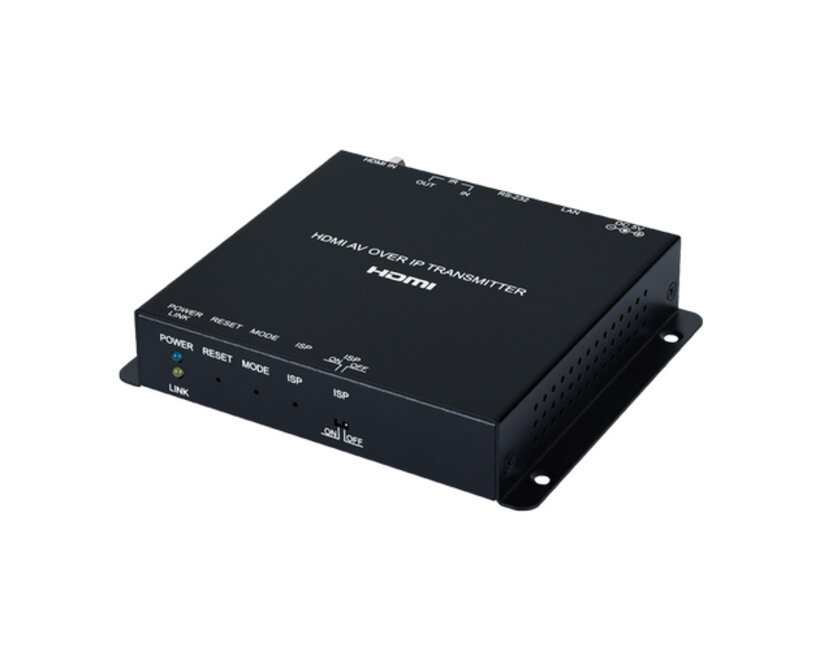

CH-331H-TX
HDMI over IP Transmitter
This device is an HDMI-over-IP transmitter that allows you to extend HDMI signals with TCP/IP protocol over a normal Cat.5e network cable. This extender supports transmission of high definition signals (up to 1080p@60Hz) with audio up to 100m on a single cable. The transmission distance can be extended even further (up to 100m per segment) by using Gigabit Ethernet network switches, allowing users to cascade the system without signal loss or delay. This transmitter also features bidirectional IR and RS-232 loop-through.
This transmitter can also operate in multicast mode, allowing you to send a single AV signal to a large number of receivers within the same local area network without additional bandwidth costs. In addition, the same multicast signal can be used to create large multi-display video walls with stunning simplicity.
- HDMI 1.4 and DVI 1.0 compliant
- HDCP 1.4 compliant
- 1 HDMI input
- Video, audio and control transmission over TCP/IP in unicast (point-to-point) or multicast (single-to-many) modes
- Support for multi-monitor video walls with 180° and 270° rotation options
- HDMI input supports resolutions up to 1080p@60Hz/WUXGA
- Supports routing of audio formats including LPCM 2.0/5.1/7.1, bitstream, and HD bitstream
- Supports IR and RS-232 bypass
- Device can be controlled via WebGUI, Telnet and AV over IP Master Controller
- Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x 3.5 mm [1x Infrared Receiver]
- 1x 3.5 mm [1x RS-232]
- Outputs
- 1x RJ-45 [1x Proprietary data]
- 1x 3,5 mm [1x infrared emitter]
- Power supply: 5V/2.6A
- Dimensions 128 mm [W] x 116 mm [D] x 25 mm [H]
- Net weight 364g
