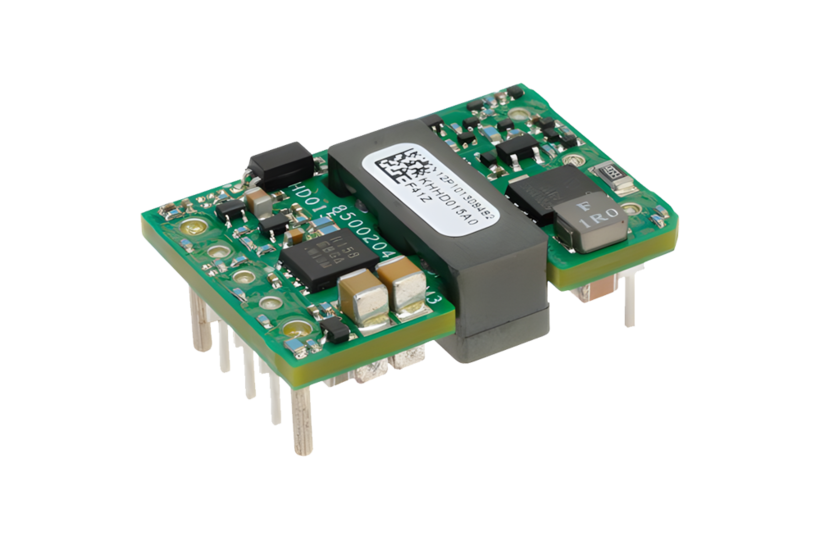

Low-Power Barracuda
Intermediate Bus Controller
Offering optimum efficiency, the low power Baracuda modules are targeted at a broad range of communications equipment. These modules can be used in powering distributed power and intermediate bus architectures, as well as the latest integrated circuits or microprocessors.
These isolated DC-DC converters can deliver up to 120W of output power and provide a precisely regulated output voltage over a wide range of input voltages (Vin = 36-75Vdc). Convenient packaging options, combined with openframe construction, enable designers to develop cost- and space-efficient solutions. Additional features include remote On/Off, remote sense, output voltage adjustment, overcurrent/voltage protections and overtemperature protection.
- Positive remote on/off logic.
- Constant switching frequency (300kHz).
- High efficiency: 92% at 5.0V full load.
- Basic insulation approved.
- Output overcurrent protection.
- Delivers up to 25A output current.
- Output overvoltage protection.
- Overtemperature protection.
OmniOn Power, formerly ABB Power Conversion, stands for highly reliable power solutions ("critical power").
The Embedded Power range offers high performance industrial power supplies, whether as classic power supplies or DC/DC converters for on-board solutions, isolating DC/DC and non-isolating POLs.
SSTW Barracuda Low Power Series
15W / 5A Max Power
MODEL INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT EFFICIENCY
SSTW001A3B 48V (36 - 75V) 12V 1.3A 88%
SSTW003A0A 48V (36 - 75V) 5V 3A 87%
SSTW005A0F 48V (36 - 75V) 3.3V 5A 88%
KSTW Barracuda Low Power Series
50W / 15A Max Power
MODEL INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT EFFICIENCY
KSTW002A5B 48V (36-75V) 12V 2.5A 90%
KSTW006A0A 48V (36-75V) 5V 6A 90%
KSTW010A0F 48V (36-75V) 3.3V 10A 90%
KSTW004A2B 48V (36-75V) 12V 4.2A 90%
KSTW010A0A 48V (36-75V) 5V 10A 91%
KSTW015A0F 48V (36-75V) 3.3V 15A 91%
KNW Barracuda Low Power Series
66W / 20A Max Power
MODEL INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT EFFICIENCY
KNW013A0A 48V (36-75V) 5V 13A 91%
KNW020A0F 48V (36-75V) 3.3V 20A 91%
ESTW Barracuda Low Power Series
120W / 36A Max Power
MODEL INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT EFFICIENCY
ESTW004A2C 48V (36-75V) 15V 4.2A 90%
ESTW010A0A 48V (36-75V) 5V 10A 91%
ESTW015A0F 48V (36-75V) 3.3V 15A 91%
ESTW006A0B 48V (36-75V) 12V 6A 90%
ESTW015A0A 48V (36-75V) 5V 15A 91%
ESTW025A0F 48V (36-75V) 3.3V 25A 92%
ESTW010A0B 48V (36-75V) 12V 10A 93%
ESTW020A0S6R0 48V (36-75V) 6V 20A 92.5%
ESTW024A0A 48V (36-75V) 5V 24A 92%
ESTW036A0F 48V (36-75V) 3.3V 36A 92%
KBVW Barracuda Low Power Series
70W / 6A Max Power
MODEL INPUT VOLTAGE OUTPUT VOLTAGE OUTPUT CURRENT EFFICIENCY
KBVW006A0B 48V (36-75V) 12V 6A 91%
